Description:16 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1, Parallel, Perpendicular, SMT, High Density, Rugged
The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to consult the manufacturer's guidelines or application notes for specific torque values.
Yes, the 404-52016-51 connector is designed to withstand high-vibration environments. ept Connectors uses a ruggedized design and secure screw terminals to ensure reliable connections even in harsh conditions.
The 404-52016-51 connector has an IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating. Consult the manufacturer's guidelines for outdoor or wet environment applications.
The 404-52016-51 connector has an operating temperature range of -40°C to 125°C. However, it's essential to consult the manufacturer's guidelines for specific temperature ratings and derating factors.
Yes, the 404-52016-51 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental and safety standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
404-52016-51 Overview

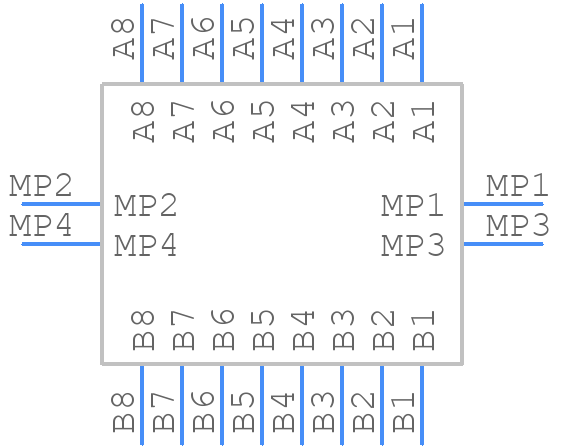

Use the download button to access the 404-52016-51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 404-5,
or try a keyword search, such as Headers and Edge Type Connectors
