404-52026-51 - ept

Description: 26 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1, Parallel, Perpendicular, SMT, High Density, Rugged

Download 404-52026-51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

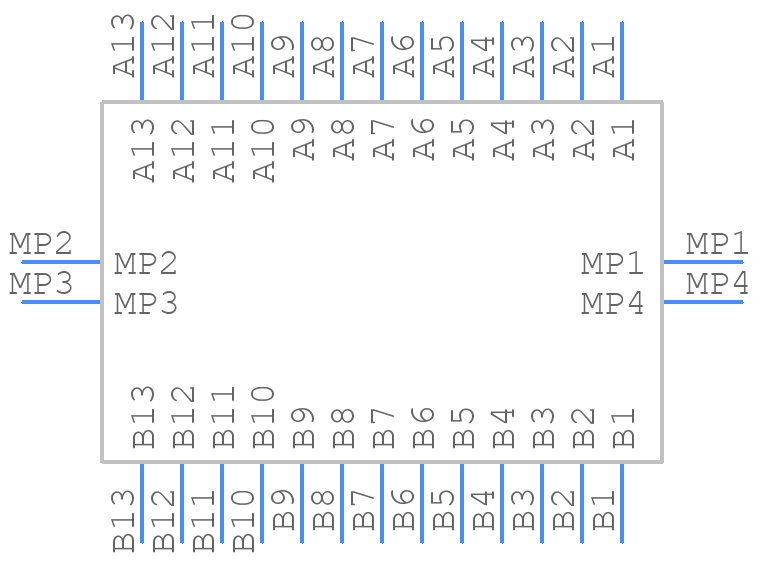

404-52026-51 - ept - PCB symbol
click to zoom
PCB Footprints
404-52026-51 - ept PCB footprint - Other - Other - 404-52026-51
click to zoom
3D Models
404-52026-51 - ept - 3D model - Other - 404-52026-51
click to zoom

404-52026-51 Details

  • Manufacturer Part Number:

    404-52026-51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8.75

  • Body Breadth:

    0.224 inch

  • Body Depth:

    0.246 inch

  • Body Length:

    0.854 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

404-52026-51 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 404-52026-51 connector is typically between 0.5-1.5 Nm, but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
  • While the 404-52026-51 connector is designed to be robust, it's essential to evaluate its performance in high-vibration environments. ept Connectors may have specific testing data or recommendations for vibration-resistant applications; it's best to consult with their technical support or review their application notes.
  • The 404-52026-51 connector is designed to operate within a specific temperature range (typically -40°C to 125°C) and humidity level. For harsh environment applications, it's crucial to review the connector's specifications and consult with ept Connectors' technical support to ensure the connector meets the required standards.
  • The mating cycle life of the 404-52026-51 connector is typically around 500-1000 cycles, but this can vary depending on the application, mating force, and environmental conditions. It's best to consult ept Connectors' technical support or review their application notes for specific guidance.
  • The 404-52026-51 connector is designed to be compatible with standard PCB materials and thicknesses, but it's essential to verify compatibility with your specific PCB design. Consult ept Connectors' technical support or review their application notes for guidance on PCB material and thickness requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

404-52026-51 Overview

Use the download button to access the 404-52026-51 schematic symbol, PCB footprint, and 3D model.
