Part Image

404-52080-51 - ept

Description: 80 pins, unmated stacking height: 6.25 mm, for board-to-board distances from 8.0 to 11.0 mm, SMT, pitch 1.27 mm, Performance level 1, Parallel, Perpendicular, SMT, High Density, Rugged

Download 404-52080-51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
404-52080-51 - ept - PCB symbol
click to zoom
PCB Footprints

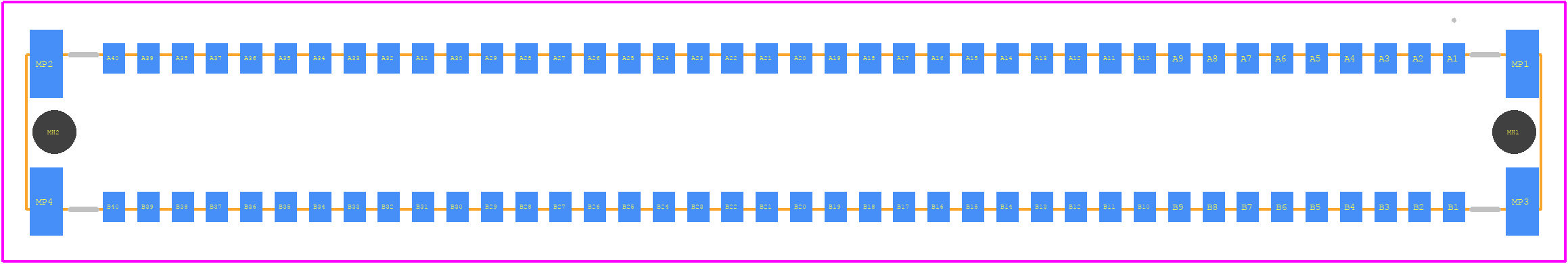

404-52080-51 - ept PCB footprint - Other - Other - 404-52080-51-2
click to zoom
3D Models
404-52080-51 - ept - 3D model - Other - 404-52080-51-2
click to zoom

404-52080-51 Details

  • Manufacturer Part Number:

    404-52080-51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8.75

  • Body Breadth:

    0.283 inch

  • Body Depth:

    0.246 inch

  • Body Length:

    2.204 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    80

  • UL Flammability Code:

    94V-0

404-52080-51 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to consult the manufacturer's guidelines or the datasheet for specific torque values.
  • Yes, the 404-52080-51 connector is designed to withstand high-vibration environments. ept Connectors uses a ruggedized design and high-quality materials to ensure reliable connections in demanding applications.
  • The 404-52080-51 connector is rated for operating temperatures between -40°C to 125°C and can withstand humid environments. However, it's essential to consult the datasheet and manufacturer's guidelines for specific environmental ratings and any necessary precautions.
  • The 404-52080-51 connector has a mating cycle life of at least 500 cycles, depending on the application and environmental conditions. This ensures reliable connections and minimizes the risk of wear and tear.
  • Yes, the 404-52080-51 connector is designed for automated assembly processes, such as pick-and-place machines. The connector's design and packaging are optimized for efficient and reliable assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

404-52080-51 Overview

Use the download button to access the 404-52080-51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 404-5, or try a keyword search, such as Headers and Edge Type Connectors
