404-53012-51 - ept

Description: Conn Socket Strip F 12 POS 1.27mm Solder ST Top Entry SMD

Download 404-53012-51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

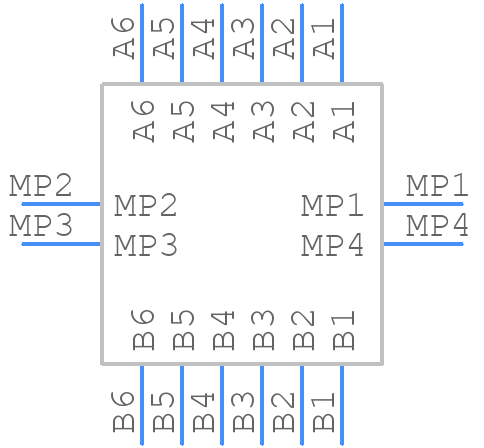

404-53012-51 - ept - PCB symbol
click to zoom
PCB Footprints
404-53012-51 - ept PCB footprint - Other - Other - 404-53012-51
click to zoom
3D Models
404-53012-51 - ept - 3D model - Other - 404-53012-51
click to zoom

404-53012-51 Details

  • Manufacturer Part Number:

    404-53012-51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8.75

  • Body Breadth:

    0.224 inch

  • Body Depth:

    0.356 inch

  • Body Length:

    0.5 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

404-53012-51 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is typically between 0.5-1.5 Nm, but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
  • While the datasheet may not explicitly mention vibration resistance, ept Connectors' products are generally designed to meet industry standards for vibration and shock. However, it's recommended to consult with the manufacturer or perform additional testing to ensure the connector meets the specific requirements of your application.
  • The datasheet may provide a temperature range, but it's essential to consider the specific temperature requirements of your application. ept Connectors' products are typically rated for temperatures up to 125°C, but some models may have higher or lower temperature limits. Consult the manufacturer's documentation or contact their technical support for specific guidance.
  • The mating cycle life of the 404-53012-51 connector is typically around 500-1000 cycles, but this can vary depending on the specific application and environmental conditions. Consult the manufacturer's documentation or contact their technical support for more information.
  • While the datasheet provides general information about the connector's dimensions and layout, it's essential to review the connector's 3D model and footprint with your PCB design team to ensure compatibility. You may also want to consult with the manufacturer's technical support or application engineers for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

404-53012-51 Overview

Use the download button to access the 404-53012-51 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 404-5, or try a keyword search, such as Headers and Edge Type Connectors
