406-52020-51 - ept

Description: 20 pins, unmated stacking height: 4.85 mm, SMT, 0.8 mm pitch, Performance level 1, Parallel, SMT, High Density, High Speed, Rugged

Download 406-52020-51 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 406-52020-51 model

Email notifications will be applied after download.

Send part feedback

Symbol

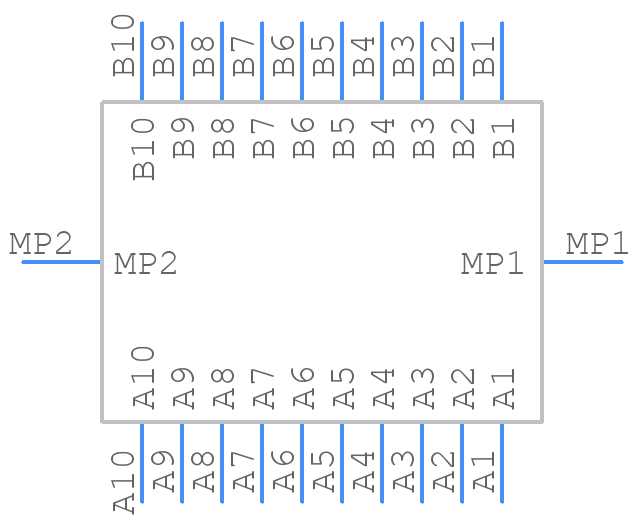

406-52020-51 - ept - PCB symbol

PCB Footprints

406-52020-51 - ept PCB footprint - Other - Other - 406-52020-51-2

3D Models

406-52020-51 - ept - 3D model - Other - 406-52020-51-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 406-52020-51
Part Number 406-52020-51
Manufacturer ept
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - 406-52020-51-2
Released Date Jul 7, 2023
Last Modified Date Jul 7, 2023 11:15 AM UTC
Pinout / Pin List Click Here (Member Only)

406-52020-51 Details

Manufacturer Part Number:
406-52020-51
Manufacturer:
ept Connectors
