Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and to minimize parasitic inductance.
To select the correct resistor value, consider the maximum current and voltage ratings of the 4114R-1-103, as well as the desired impedance and power rating. You can use online calculators or consult with a Bourns representative to determine the optimal value for your specific application.
The 4114R-1-103 has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to consider the temperature range of your application and potential thermal management strategies.
Yes, the 4114R-1-103 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in a wide range of applications, including those in the European Union.
The lead time and availability of the 4114R-1-103 can vary depending on the region, distributor, and quantity required. It's recommended to check with authorized distributors, such as Digi-Key or Mouser, or contact Bourns directly for the most up-to-date information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4114R-1-103 Overview

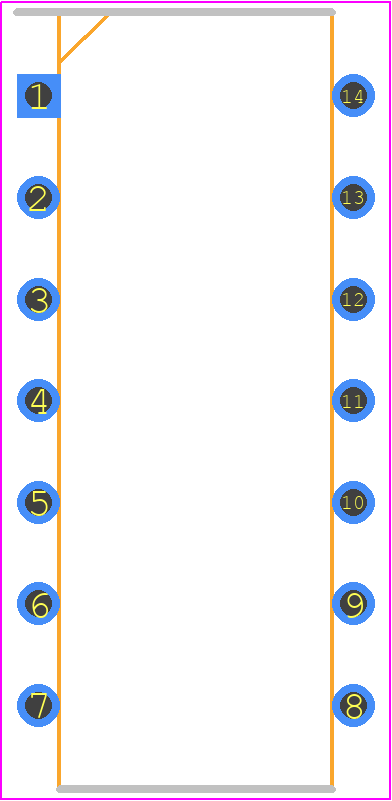

Use the download button to access the 4114R-1-103 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4114R,
or try a keyword search
