Bourns recommends a symmetrical PCB layout with the chip resistors placed close to the IC pins to minimize parasitic inductance and capacitance. A ground plane under the resistors can also help reduce noise and improve thermal dissipation.
The 4114R-1-221LF has a power rating of 0.125W per resistor. Ensure that the PCB design provides adequate thermal dissipation, such as using thermal vias or a heat sink, to prevent overheating and reduce the risk of thermal runaway.
The 4114R-1-221LF has a resistor tolerance of ±1%. This means that the actual resistance value may vary by up to 1% from the nominal value specified in the datasheet.
While the 4114R-1-221LF is suitable for general-purpose applications, it may not be the best choice for high-frequency applications due to its relatively high parasitic inductance and capacitance. Bourns recommends using their high-frequency resistor networks, such as the 4114R-HF series, for frequencies above 100 MHz.
To ensure reliability and longevity, follow proper handling and storage procedures, avoid excessive temperature and humidity, and use a conformal coating to protect the device from environmental factors. Additionally, consider using Bourns' high-reliability resistor networks, such as the 4114R-1-221LF-HR series, which are designed for demanding applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4114R-1-221LF Overview

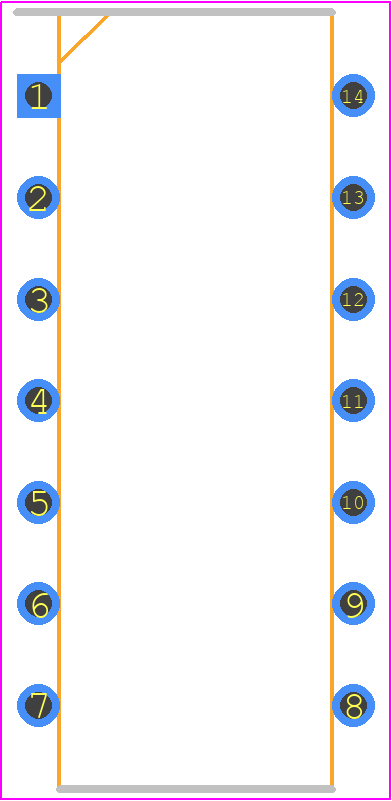

Use the download button to access the 4114R-1-221LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4114R,
or try a keyword search, such as Array/Network Resistors
