4114R-1-471LF - Bourns

Description: Resistor Networks & Arrays 14pin 470 OHMS Isolated Low Profile

Download 4114R-1-471LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4114R-1-471LF - Bourns - PCB symbol
click to zoom
PCB Footprints

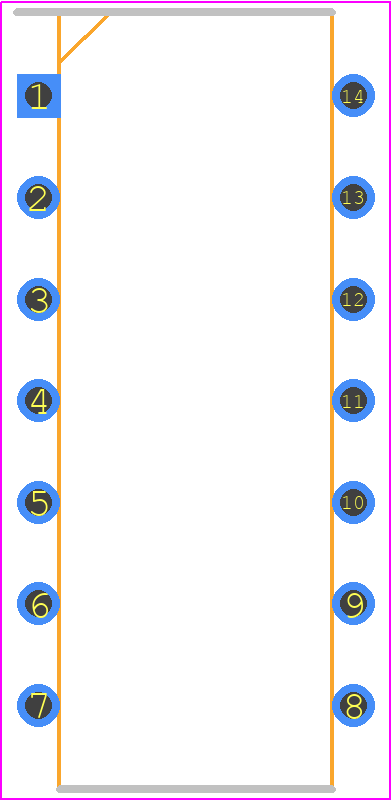

4114R-1-471LF - Bourns PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14-DIP
click to zoom
3D Models
4114R-1-471LF - Bourns - 3D model - Dual-In-Line Packages - 14-DIP
click to zoom

4114R-1-471LF Details

  • Manufacturer Part Number:

    4114R-1-471LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP, ROHS COMPLIANT

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.15

  • Construction:

    Molded

  • Element Power Dissipation:

    0.25 W

  • First Element Resistance:

    470 Ω

  • JESD-609 Code:

    e3

  • Lead Length:

    3.43 mm

  • Lead Spacing:

    2.54 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    7

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    4.57 mm

  • Package Length:

    19.43 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Package Width:

    7.87 mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    470 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    7731

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    FLAT

  • Tolerance:

    2%

  • Working Voltage:

    100 V

4114R-1-471LF Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes (AN16) and on their website. It's essential to follow these guidelines to ensure proper soldering and to minimize thermal resistance.
  • Handle the component by the body, avoiding touching the leads or the ceramic element. Use anti-static wrist straps, mats, or packaging to prevent ESD damage. For rework, use a low-temperature soldering iron (<250°C) and a solder with a low melting point to prevent thermal shock.
  • Bourns recommends derating the maximum voltage by 10-15% to ensure reliable operation and to account for variations in manufacturing and environmental conditions.
  • The 4114R-1-471LF is designed for high-frequency applications, but its behavior may vary depending on the specific frequency range and circuit conditions. Consult Bourns' application notes and simulation tools to ensure the component meets your specific requirements.
  • Ensure good thermal conductivity between the component and the PCB by using thermal vias, thermal pads, or thermal interface materials. Keep the component away from heat sources and ensure adequate airflow to prevent overheating.
