Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and minimize thermal resistance.
Proper thermal management is crucial for the 4114R-2-103LF. Ensure good airflow around the component, and consider using a heat sink or thermal pad to reduce thermal resistance. Bourns recommends a maximum junction temperature of 150°C.
Although the datasheet doesn't explicitly state the maximum operating voltage, Bourns recommends operating the device within the specified voltage range (up to 100V) to ensure reliability and prevent damage.
The 4114R-2-103LF is designed for general-purpose applications, and its frequency response is limited. For high-frequency applications, consider using a more suitable component, such as a high-frequency resistor or a specialized RF component.
Yes, the 4114R-2-103LF is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4114R-2-103LF Overview

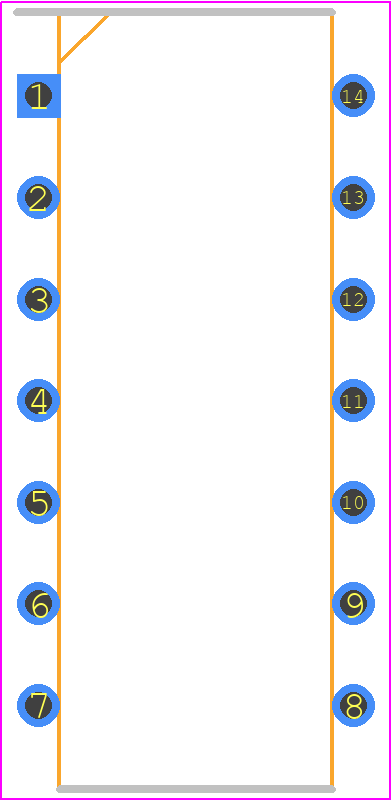

Use the download button to access the 4114R-2-103LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4114R,
or try a keyword search, such as Array/Network Resistors
