4114R-2-472LF - Bourns

Description: Resistor Networks & Arrays 14pin 4.7Kohms Bussed Low Profile

Download 4114R-2-472LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4114R-2-472LF - Bourns - PCB symbol
click to zoom
PCB Footprints

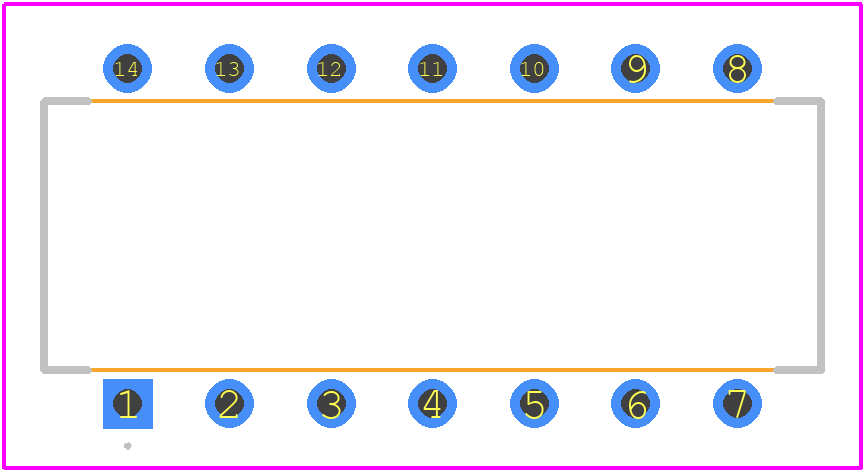

4114R-2-472LF - Bourns PCB footprint - Other - Other - 4114R-2-472LF-1
click to zoom
3D Models
4114R-2-472LF - Bourns - 3D model - Other - 4114R-2-472LF-1
click to zoom

4114R-2-472LF Details

  • Manufacturer Part Number:

    4114R-2-472LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP, ROHS COMPLIANT

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.15

  • Construction:

    Molded

  • Element Power Dissipation:

    0.125 W

  • First Element Resistance:

    4700 Ω

  • JESD-609 Code:

    e3

  • Lead Length:

    3.43 mm

  • Lead Spacing:

    2.54 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Network Type:

    BUSSED

  • Number of Elements:

    13

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    4.57 mm

  • Package Length:

    19.43 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Package Width:

    7.87 mm

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Resistance:

    4700 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    7731

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    FLAT

  • Tolerance:

    2%

  • Working Voltage:

    100 V

4114R-2-472LF Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and minimize parasitic effects.
  • The 4114R-2-472LF is designed to provide excellent high-frequency noise suppression and EMI filtering. The device's internal construction and materials are optimized to minimize radiation and susceptibility to electromagnetic interference.
  • The 4114R-2-472LF is rated for operation up to 125°C, but it's essential to consider the device's power rating and derate it accordingly for high-temperature applications. Consult Bourns' application notes and thermal management guidelines for more information.
  • Yes, the 4114R-2-472LF is compatible with lead-free soldering processes and meets the requirements of the RoHS directive. Bourns provides guidance on lead-free soldering in their application note AN163.
  • The typical tolerance for the inductance value of the 4114R-2-472LF is ±10%. However, it's essential to consult the specific datasheet and Bourns' quality documentation for more information on tolerance and variability.
