4116R-1-103 - Bourns

4116R-1-103 Details

• Manufacturer Part Number:

  4116R-1-103

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

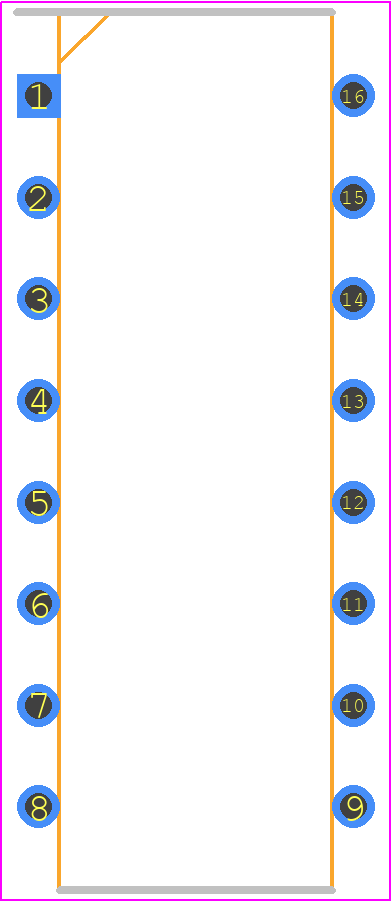

• Package Description:

  DIP

• Reach Compliance Code:

  Not Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8533.21.00.60

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Bourns Inc

• YTEOL:

  0

• Construction:

  Molded

• Element Power Dissipation:

  0.25 W

• First Element Resistance:

  10000 Ω

• JESD-609 Code:

  e0

• Lead Length:

  3.43 mm

• Lead Spacing:

  2.54 mm

• Mounting Feature:

  THROUGH HOLE MOUNT

• Network Type:

  ISOLATED

• Number of Elements:

  1

• Number of Functions:

  8

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Height:

  4.57 mm

• Package Length:

  21.97 mm

• Package Shape:

  RECTANGULAR PACKAGE

• Package Style:

  DIP

• Package Width:

  7.87 mm

• Rated Power Dissipation (P):

  2.25 W

• Rated Temperature:

  70 °C

• Resistance:

  10000 Ω

• Resistor Type:

  ARRAY/NETWORK RESISTOR

• Series:

  4100R

• Size Code:

  8631

• Subcategory:

  Array/Network Resistors

• Surface Mount:

  NO

• Technology:

  METAL GLAZE/THICK FILM

• Temperature Coefficient:

  100 ppm/°C

• Temperature Coefficient Tracking:

  50 ppm/°C

• Terminal Finish:

  TIN LEAD

• Terminal Shape:

  FLAT

• Tolerance:

  2%

• Working Voltage:

  100 V
