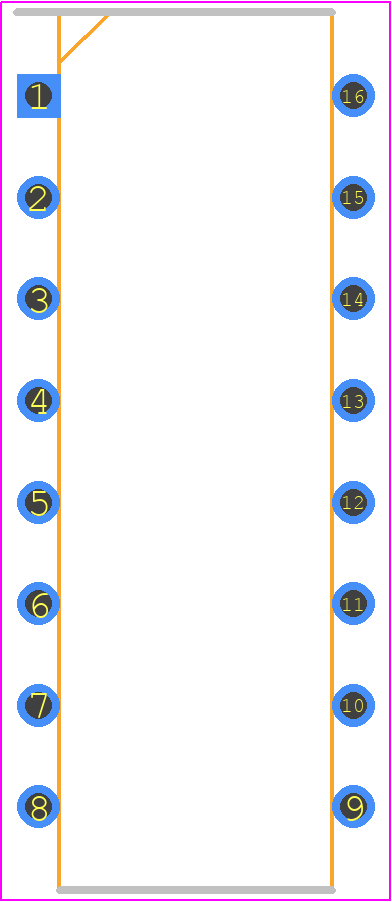

The recommended PCB footprint for the 4116R-1-104 is a rectangular pad with dimensions of 1.5mm x 0.8mm, with a 0.5mm diameter hole in the center for the pin.
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Hold the iron at a 20-30° angle and apply gentle pressure.
The maximum operating temperature range for the 4116R-1-104 is -40°C to +125°C, with a storage temperature range of -40°C to +150°C.
Yes, the 4116R-1-104 is designed to withstand high-vibration environments, with a vibration rating of 10G peak acceleration, 10-2000Hz frequency range.
To handle ESD protection, use an ESD wrist strap or mat, and ensure that the PCB and components are properly grounded. Avoid touching the component pins or PCB traces to prevent ESD damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4116R-1-104 Overview
Use the download button to access the 4116R-1-104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4116R,
or try a keyword search
