4116R-1-223LF - Bourns

Description: RoHS compliant* versions available (see How to Order “Termination” option) ■ Compatible with automatic insertion equipment ■ Superior package integrity ■ Now available with improved tolerance to ±0.5 %

Download 4116R-1-223LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4116R-1-223LF - Bourns - PCB symbol
click to zoom
PCB Footprints

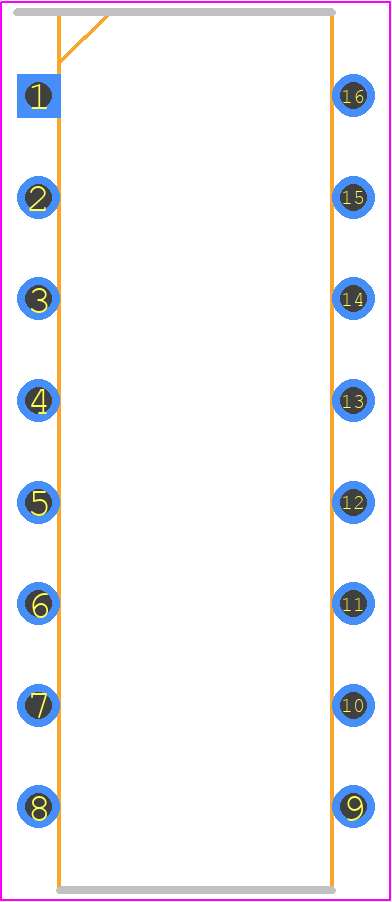

4116R-1-223LF - Bourns PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16
click to zoom
3D Models
4116R-1-223LF - Bourns - 3D model - Dual-In-Line Packages - DIP-16
click to zoom

4116R-1-223LF Details

  • Manufacturer Part Number:

    4116R-1-223LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP, ROHS COMPLIANT

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.15

  • Construction:

    Molded

  • Element Power Dissipation:

    0.25 W

  • First Element Resistance:

    22000 Ω

  • JESD-609 Code:

    e3

  • Lead Length:

    3.43 mm

  • Lead Spacing:

    2.54 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    4.57 mm

  • Package Length:

    21.97 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Package Width:

    7.87 mm

  • Rated Power Dissipation (P):

    2.25 W

  • Rated Temperature:

    70 °C

  • Resistance:

    22000 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    8631

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    FLAT

  • Tolerance:

    2%

  • Working Voltage:

    100 V

4116R-1-223LF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 4116R-1-223LF can be found in the Bourns Inc. application note AN204, which provides guidelines for PCB layout and land pattern design.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a thermally conductive pad or heat sink to dissipate heat away from the component.
  • The maximum allowable voltage for the 4116R-1-223LF is 50V, as specified in the datasheet. Exceeding this voltage may result in damage to the component or affect its reliability.
  • Yes, the 4116R-1-223LF is suitable for high-frequency applications up to 100 MHz. However, it is recommended to consult the datasheet and application notes for specific guidance on using the component in high-frequency circuits.
  • The typical lead time for the 4116R-1-223LF can vary depending on the region and availability. It is recommended to check with authorized distributors or the manufacturer's website for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4116R-1-223LF Overview

Use the download button to access the 4116R-1-223LF schematic symbol, PCB footprint, and 3D model.
