4116R-1-331LF - Bourns

Description: 8-isolated film resistor,330R,0.25W,2% Bourns Isolated Resistor Array 330Ω ±2% 8 Resistors, 2.25W Total, DIP package 4100R Through Hole

Download 4116R-1-331LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4116R-1-331LF - Bourns - PCB symbol
click to zoom
PCB Footprints

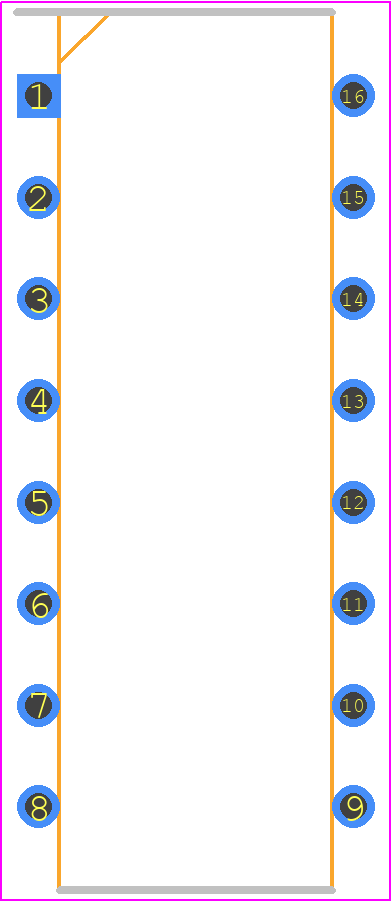

4116R-1-331LF - Bourns PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP Package 4100R_2
click to zoom
3D Models
4116R-1-331LF - Bourns - 3D model - Dual-In-Line Packages - DIP Package 4100R_2
click to zoom

4116R-1-331LF Details

  • Manufacturer Part Number:

    4116R-1-331LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP, ROHS COMPLIANT

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.15

  • Construction:

    Molded

  • Element Power Dissipation:

    0.25 W

  • First Element Resistance:

    330 Ω

  • JESD-609 Code:

    e3

  • Lead Length:

    3.43 mm

  • Lead Spacing:

    2.54 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    4.57 mm

  • Package Length:

    21.97 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Package Width:

    7.87 mm

  • Rated Power Dissipation (P):

    2.25 W

  • Rated Temperature:

    70 °C

  • Resistance:

    330 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    8631

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    FLAT

  • Tolerance:

    2%

  • Working Voltage:

    100 V

4116R-1-331LF Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, the 4116R-1-331LF is compatible with lead-free soldering processes. Bourns Inc ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The maximum operating temperature range for the 4116R-1-331LF is -40°C to 125°C (-40°F to 257°F). Operating the component outside this range may affect its performance and reliability.
  • While the 4116R-1-331LF is designed to be robust, it's essential to evaluate its suitability for high-vibration or high-shock applications. Bourns Inc recommends consulting their application notes and performing thorough testing to ensure the component meets the specific requirements of your application.
  • Yes, to ensure optimal performance and minimize electromagnetic interference (EMI), it's recommended to follow Bourns Inc's guidelines for PCB layout, including keeping the component away from high-current paths and minimizing loop areas.
