4116R-1-391LF footprint, schematic symbol and 3D model by Bourns

Symbol

click to zoom

PCB Footprints

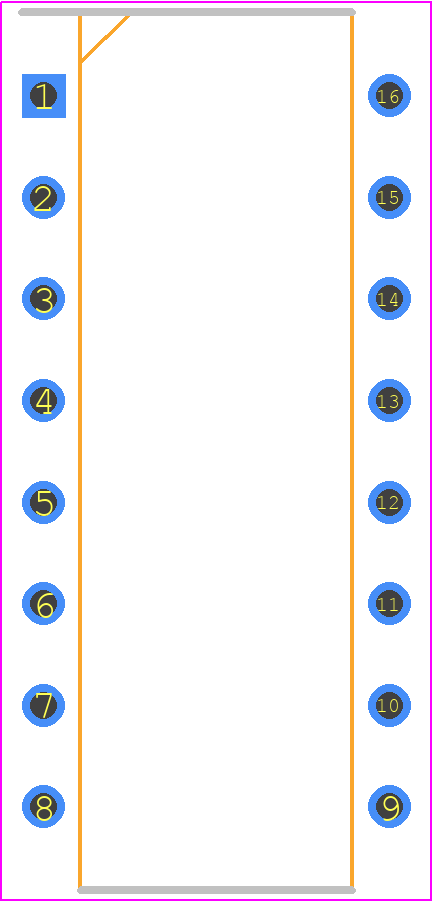

4116R-1-391LF - Bourns PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 6

click to zoom

3D Models

4116R-1-391LF - Bourns - 3D model - Dual-In-Line Packages - 6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 4116R-1-391LF
Part Number 4116R-1-391LF
Manufacturer Bourns
Pin Count 16
Part Category Resistor Network
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 6
Released Date Feb 23, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

4116R-1-391LF Details

Manufacturer Part Number:
4116R-1-391LF
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP, ROHS COMPLIANT
Reach Compliance Code:
Not Compliant
Country Of Origin:
Costa Rica
ECCN Code:
EAR99
HTS Code:
8533.21.00.60
Factory Lead Time:
7 Weeks
Manufacturer:
Bourns Inc
YTEOL:
7.15
Construction:
Molded
Element Power Dissipation:
0.25 W
First Element Resistance:
390 Ω
JESD-609 Code:
e3
Lead Length:
3.43 mm
Lead Spacing:
2.54 mm
Mounting Feature:
THROUGH HOLE MOUNT
Network Type:
ISOLATED
Number of Elements:
1
Number of Functions:
8
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Height:
4.57 mm
Package Length:
21.97 mm
Package Shape:
RECTANGULAR PACKAGE
Package Style:
DIP
Package Width:
7.87 mm
Rated Power Dissipation (P):
2.25 W
Rated Temperature:
70 °C
Resistance:
390 Ω
Resistor Type:
ARRAY/NETWORK RESISTOR
Size Code:
8631
Surface Mount:
NO
Technology:
METAL GLAZE/THICK FILM
Temperature Coefficient:
100 ppm/°C
Temperature Coefficient Tracking:
50 ppm/°C
Terminal Finish:
MATTE TIN
Terminal Shape:
FLAT
Tolerance:
2%
Working Voltage:
100 V

4116R-1-391LF Frequently Asked Questions (FAQs)

Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to minimize thermal resistance.
The 4116R-1-391LF has a high power rating, and proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout and land pattern. You can also consider using thermal interface materials to improve heat transfer.
While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +100°C for optimal performance.
The 4116R-1-391LF is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with Bourns or perform additional testing to ensure the device's reliability and performance.
Bourns recommends following the IPC/JEDEC J-STD-020D.1 standard for soldering profiles. A typical profile would include a peak temperature of 260°C, with a dwell time of 20-30 seconds above 220°C.

Trust Checks

Community Provided

System Verified

Community Approved

4116R-1-391LF Overview

Use the download button to access the 4116R-1-391LF schematic symbol, PCB footprint, and 3D model.
