The recommended PCB footprint for the 4116R-1-471 is a rectangular pad with dimensions of 3.8mm x 2.5mm, with a 1.3mm diameter hole in the center for the radial lead.
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder to the pad before placing the component. Use a solder with a melting point of 180°C to 190°C.
The maximum operating temperature range for the 4116R-1-471 is -40°C to 125°C, with a derating of 1.33% per °C above 80°C.
Yes, the 4116R-1-471 is designed to withstand high-vibration environments, with a vibration resistance of 10G peak acceleration, 10-2000 Hz frequency range.
Handle the 4116R-1-471 with ESD-protective materials, such as wrist straps, mats, and bags. Avoid touching the component's leads or body, and use an ESD-protected workstation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
4116R-1-471 Overview

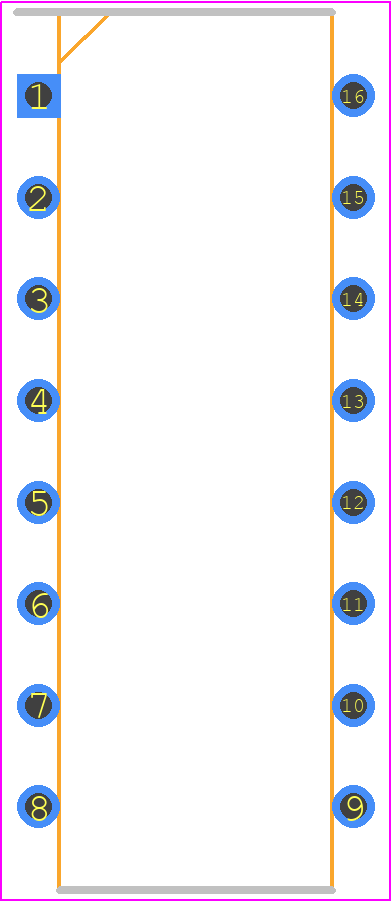

Use the download button to access the 4116R-1-471 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4116R,
or try a keyword search
