The recommended land pattern for the 4116R-1-471LF can be found in the Bourns Inc. application note AN-13, which provides guidelines for PCB layout and land pattern design.
The 4116R-1-471LF has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. A thermal pad on the PCB can help to dissipate heat, and a thermal interface material (TIM) can be used to improve heat transfer between the component and the heat sink.
The recommended soldering profile for the 4116R-1-471LF is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s. It's essential to follow the soldering profile recommended by Bourns Inc. to ensure reliable assembly and to prevent damage to the component.
After soldering, the 4116R-1-471LF should be cleaned with a mild solvent, such as isopropyl alcohol, to remove any flux residue. The component should then be dried with a soft brush or air blower to prevent moisture accumulation. It's essential to follow proper cleaning and drying procedures to prevent corrosion and ensure reliable operation.
The 4116R-1-471LF is an electrostatic discharge (ESD) sensitive device. To prevent damage, it's essential to handle the component with ESD-safe materials, such as wrist straps, mats, and bags. It's also recommended to ground oneself before handling the component and to avoid touching the component's pins or leads.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4116R-1-471LF Overview

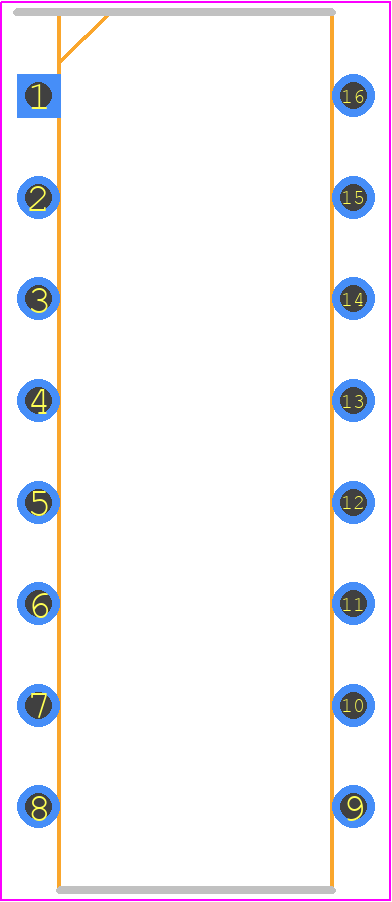

Use the download button to access the 4116R-1-471LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4116R,
or try a keyword search, such as Array/Network Resistors
