The recommended land pattern for the 4116R-1-472LF can be found in the Bourns Inc. application note AN-13, which provides guidelines for PCB layout and land pattern design.
The 4116R-1-472LF has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. A thermal pad on the PCB can help dissipate heat, and a thermal interface material can be used to improve heat transfer.
The ESR of the 4116R-1-472LF is not explicitly stated in the datasheet. However, according to Bourns Inc., the ESR is typically around 0.15 ohms. This value can be used for impedance calculations and filter design.
While the 4116R-1-472LF is a high-quality component, it may not meet the specific requirements for high-reliability or aerospace applications. Bourns Inc. offers specialized components and screening options for these applications. Engineers should consult with Bourns Inc. or a qualified representative to determine the suitability of the 4116R-1-472LF or alternative components for their specific application.
The 4116R-1-472LF meets various regulatory requirements, including RoHS and REACH. However, engineers should verify compliance with specific regulations, such as UL, CE, or others, by consulting the datasheet, Bourns Inc.'s website, or contacting their representative.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4116R-1-472LF Overview

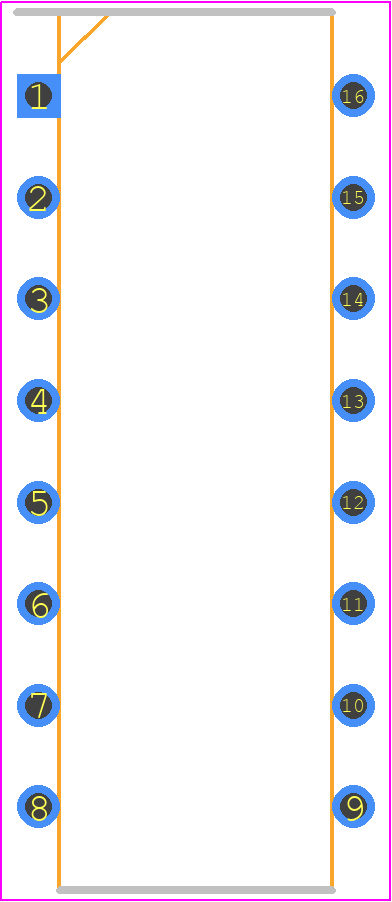

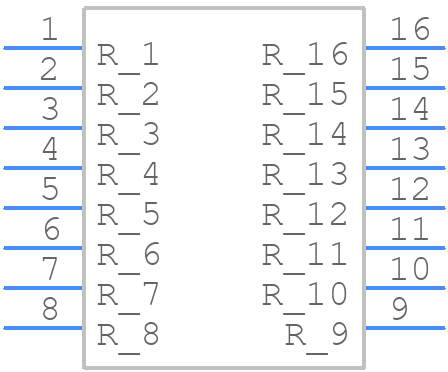

Use the download button to access the 4116R-1-472LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4116R,
or try a keyword search, such as Array/Network Resistors
