4116R-2-332LF - Bourns

Description: Resistor Networks & Arrays 16pin 3.3Kohms Bussed Low Profile

Download 4116R-2-332LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4116R-2-332LF - Bourns - PCB symbol
click to zoom
PCB Footprints

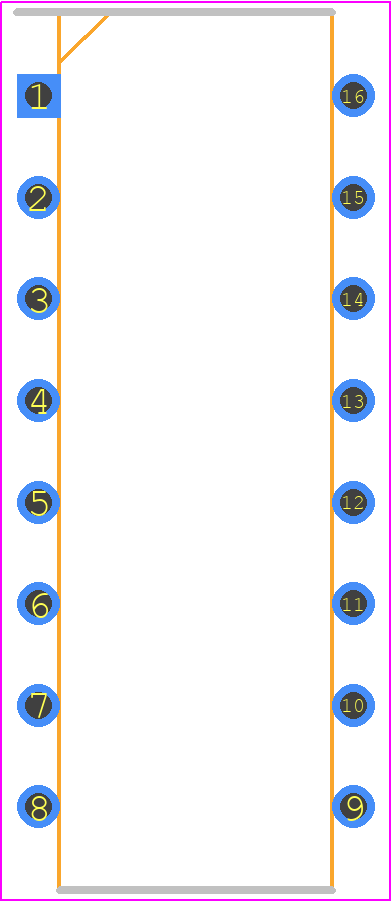

4116R-2-332LF - Bourns PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Pin DIP Package
click to zoom
3D Models
4116R-2-332LF - Bourns - 3D model - Dual-In-Line Packages - 16-Pin DIP Package
click to zoom

4116R-2-332LF Details

  • Manufacturer Part Number:

    4116R-2-332LF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP, ROHS COMPLIANT

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.15

  • Construction:

    Molded

  • Element Power Dissipation:

    0.125 W

  • First Element Resistance:

    3300 Ω

  • JESD-609 Code:

    e3

  • Lead Length:

    3.43 mm

  • Lead Spacing:

    2.54 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Network Type:

    BUSSED

  • Number of Elements:

    15

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    4.57 mm

  • Package Length:

    21.97 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    DIP

  • Package Width:

    7.87 mm

  • Rated Power Dissipation (P):

    2.25 W

  • Rated Temperature:

    70 °C

  • Resistance:

    3300 Ω

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Size Code:

    8631

  • Surface Mount:

    NO

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Temperature Coefficient Tracking:

    50 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    FLAT

  • Tolerance:

    2%

  • Working Voltage:

    100 V
