4116R-3-331/471LF footprint, schematic symbol and 3D model by Bourns

Symbol

click to zoom

PCB Footprints

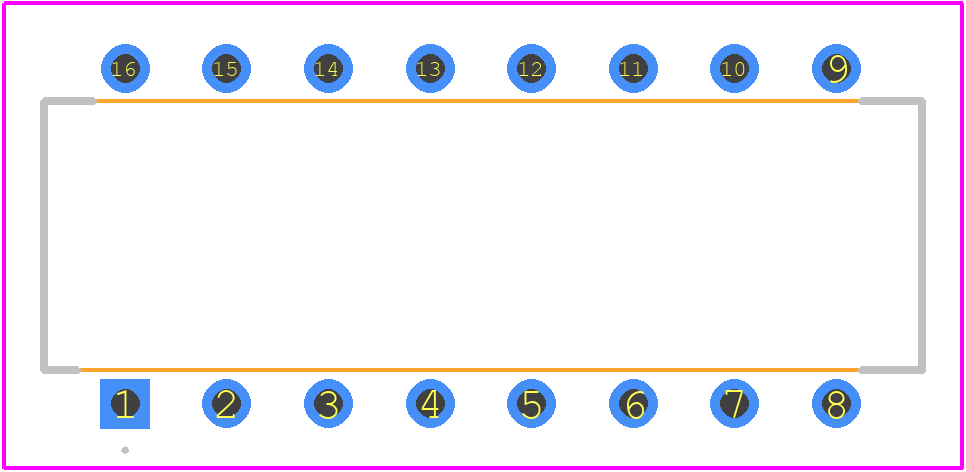

4116R-3-331/471LF - Bourns PCB footprint - Other - Other - 4116R-3-331/471LF-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 4116R-3-331/471LF
Part Number 4116R-3-331/471LF
Manufacturer Bourns
Pin Count 16
Part Category Resistor Network (16-Pin)
Package Category Other
Footprint Name Other - 4116R-3-331/471LF-3
Released Date Jun 19, 2026
Last Modified Date Jun 19, 2026 11:33 AM UTC
Pinout / Pin List Click Here (Member Only)

4116R-3-331/471LF Details

Manufacturer Part Number:
4116R-3-331/471LF
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP, ROHS COMPLIANT
Reach Compliance Code:
Not Compliant
Country Of Origin:
Costa Rica
ECCN Code:
EAR99
HTS Code:
8533.21.00.60
Factory Lead Time:
7 Weeks
Manufacturer:
Bourns Inc
YTEOL:
7.15
Additional Feature:
DUAL TERMINATOR
Construction:
Molded
Element Power Dissipation:
0.125 W
First Element Resistance:
330 Ω
JESD-609 Code:
e3
Lead Length:
3.43 mm
Lead Spacing:
2.54 mm
Mounting Feature:
THROUGH HOLE MOUNT
Network Type:
TERMINATOR
Number of Elements:
2
Number of Functions:
14
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Height:
4.57 mm
Package Length:
21.97 mm
Package Shape:
RECTANGULAR PACKAGE
Package Style:
DIP
Package Width:
7.87 mm
Rated Power Dissipation (P):
2.25 W
Rated Temperature:
70 °C
Resistance:
330 Ω
Resistor Type:
ARRAY/NETWORK RESISTOR
Second/Last Element Resistance:
470 Ω
Size Code:
8631
Surface Mount:
NO
Technology:
METAL GLAZE/THICK FILM
Temperature Coefficient:
100 ppm/°C
Temperature Coefficient Tracking:
50 ppm/°C
Terminal Finish:
MATTE TIN
Terminal Shape:
FLAT
Tolerance:
2%
Working Voltage:
100 V

4116R-3-331/471LF Frequently Asked Questions (FAQs)

Bourns provides a recommended PCB land pattern in their application note AN204, which can be found on their website. The recommended land pattern ensures proper soldering and thermal management.
Yes, the 4116R-3-331/471LF is designed to withstand high-vibration environments. Bourns specifies a vibration test per IEC 60068-2-6, which ensures the component can operate reliably in applications with high mechanical stress.
Bourns recommends following the soldering guidelines outlined in their application note AN203. This includes using a soldering iron with a temperature of 250°C to 260°C, and ensuring the component is properly aligned with the PCB land pattern.
The 4116R-3-331/471LF has an operating temperature range of -40°C to 150°C. However, it's essential to note that the component's performance may degrade at extreme temperatures, and derating may be necessary to ensure reliable operation.
Yes, the 4116R-3-331/471LF is compatible with lead-free soldering processes. Bourns specifies that the component meets the requirements of the RoHS directive and can be used in lead-free soldering applications.

Trust Checks

Community Provided

System Verified

Community Approved

4116R-3-331/471LF Overview

Use the download button to access the 4116R-3-331/471LF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 4116R, or try a keyword search, such as Array/Network Resistors
