41612-96ABC-FS - Multicomp Pro

Description: MULTICOMP PRO 41612-96ABC-FSDIN 41612 Connector, 41612, 96 Contacts, Receptacle, 2.54 mm, 3 Row, a + b + c

Download 41612-96ABC-FS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
41612-96ABC-FS - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

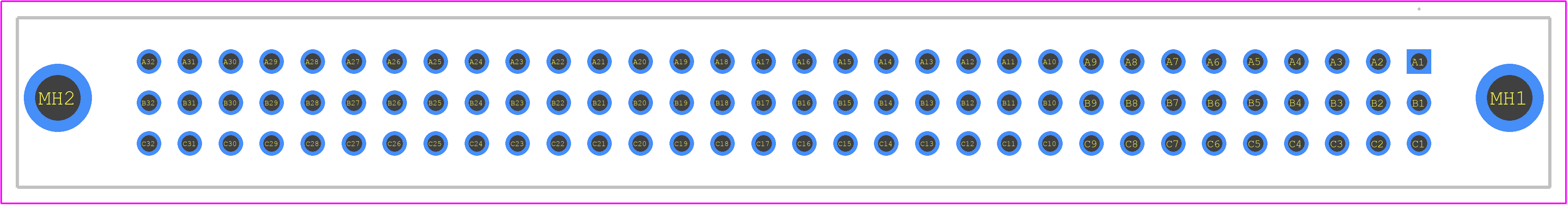

41612-96ABC-FS - Multicomp Pro PCB footprint - Other - Other - 41612-96ABC-FS
click to zoom
3D Models
41612-96ABC-FS - Multicomp Pro - 3D model - Other - 41612-96ABC-FS
click to zoom

41612-96ABC-FS Details

  • Manufacturer Part Number:

    41612-96ABC-FS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

41612-96ABC-FS Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 41612-96ABC-FS connector is 0.5-1.5 Nm (5-13 in-lbs).
  • Yes, the 41612-96ABC-FS connector is designed to withstand high-vibration environments and is suitable for applications with vibration levels up to 10G.
  • Yes, the 41612-96ABC-FS connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C and humidity levels up to 95% RH.
  • The 41612-96ABC-FS connector has a mating cycle life of at least 500 cycles.
  • Yes, the 41612-96ABC-FS connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
