Symbol

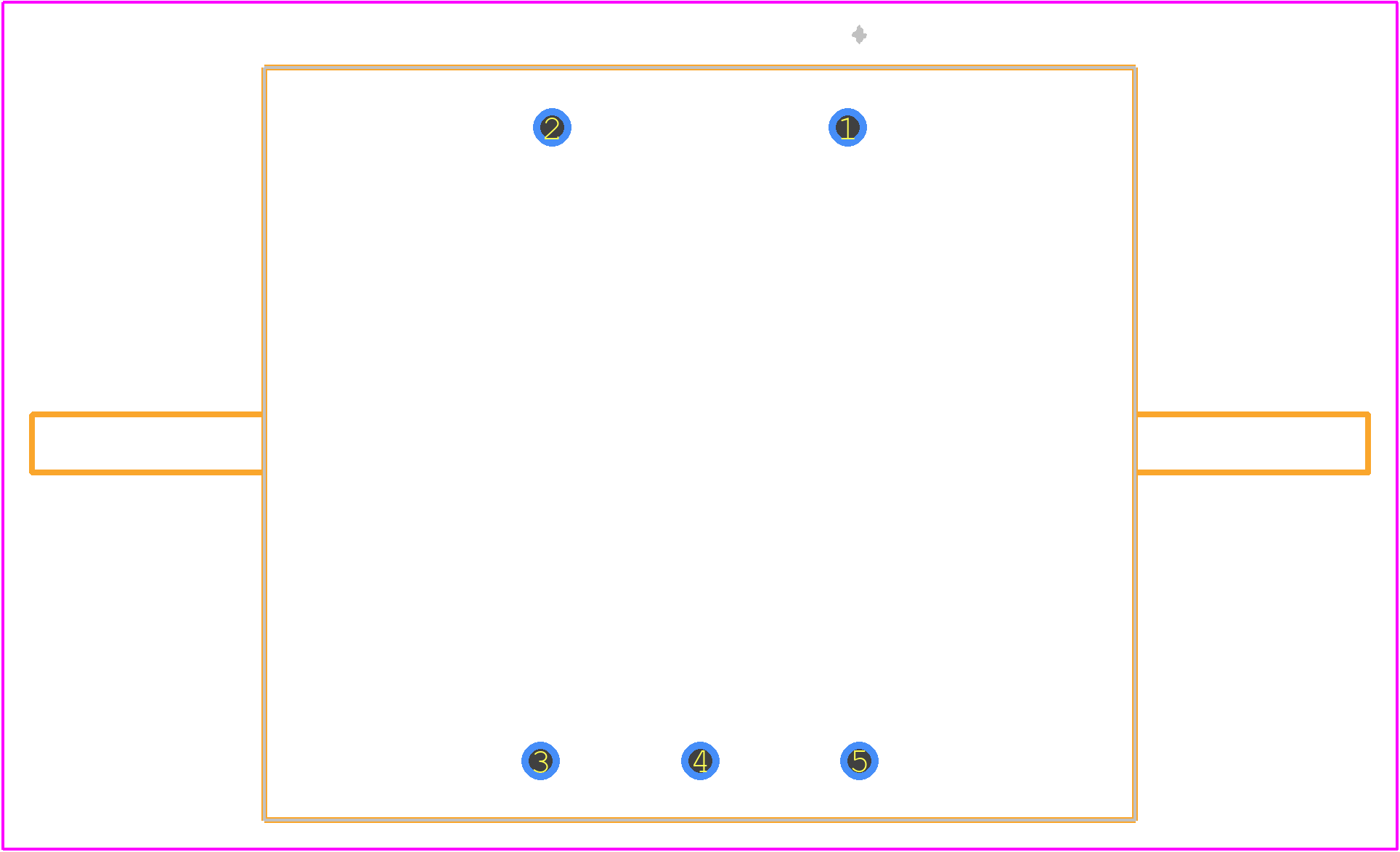

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 41PG120
- Part Number 41PG120
- Manufacturer Xicon
- Pin Count 5
- Part Category Transformer
- Package Category Other
- Footprint Name Other - 41PG120-1
- Released Date Nov 13, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
41PG120 Details
-
Manufacturer Part Number:
41PG120
-
Manufacturer:
Xicon Passive Components
Trust Checks
Expert Contribution
System Verified
Community Approved
41PG120 Overview
Use the download button to access the 41PG120 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 41PG1,
or try a keyword search, such as Visible LEDs
