425F35B016M0000 - CTS

Description: 16 MHz ±30ppm Crystal 13pF 100 Ohms 4-SMD, No Lead , 13pF , 100 Ohms , -20°C ~ 70°C , 4-SMD

Download 425F35B016M0000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

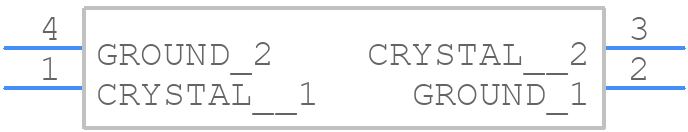

425F35B016M0000 - CTS - PCB symbol
click to zoom
PCB Footprints
425F35B016M0000 - CTS PCB footprint - Other - Other - 2.50mm x 2.00mm_2026-1.1
click to zoom
3D Models
425F35B016M0000 - CTS - 3D model - Other - 2.50mm x 2.00mm_2026-1.1
click to zoom

425F35B016M0000 Details

  • Manufacturer Part Number:

    425F35B016M0000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN COMPLIANT, CERAMIC, METAL, 4 PIN

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8541.60.00.50

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    CTS Corporation

  • YTEOL:

    7

  • Additional Feature:

    TAPE AND REEL

  • Aging:

    3 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    100 µW

  • Frequency Stability:

    0.005%

  • Frequency Tolerance:

    30 ppm

  • JESD-609 Code:

    e4

  • Load Capacitance:

    13 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    16 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Physical Dimension:

    L2.5XB2.0XH0.65 (mm)/L0.098XB0.079XH0.026 (inch)

  • Series Resistance:

    100 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

425F35B016M0000 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 425F35B016M0000 is -40°C to +85°C.
  • To ensure the oscillator starts up correctly, make sure to decouple the power supply with a 0.1uF capacitor and use a 1kΩ resistor in series with the output to prevent oscillations.
  • The typical current consumption of the 425F35B016M0000 is 20mA, but it can vary depending on the specific application and operating conditions.
  • Yes, the 425F35B016M0000 is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure reliability.
  • The frequency of the 425F35B016M0000 is fixed and cannot be adjusted. If you need a different frequency, you may need to consider a different oscillator model or consult with the manufacturer.
