42820-4233 - Molex

42820-4233 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 42820-4233 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
• Is this connector suitable for outdoor or harsh environment applications?
  The 42820-4233 connector has a plastic housing with a UL94-V0 flammability rating, which provides some level of protection against environmental factors. However, it's not designed for direct exposure to harsh outdoor conditions, such as extreme temperatures, moisture, or UV radiation. For outdoor or harsh environment applications, consider using connectors with additional protection features, such as IP67 or IP69K ratings.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with some limitations. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. It's essential to consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.

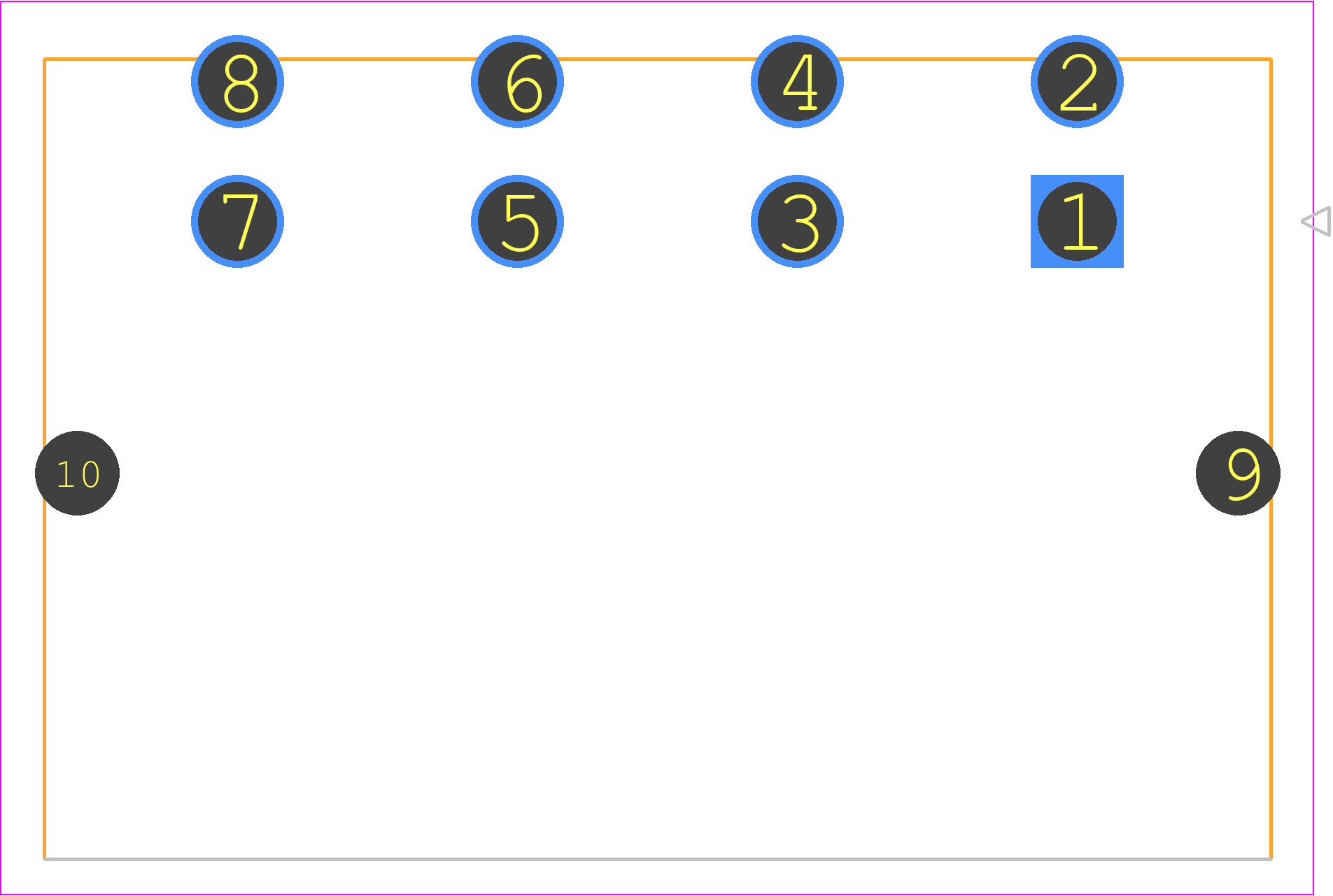

• Are there any specific PCB layout considerations for this connector?
  Yes, the 42820-4233 connector requires a specific PCB layout to ensure proper mating and unmating. It's essential to follow Molex's recommended PCB layout guidelines, including the recommended pad size, shape, and spacing, to ensure reliable connections and prevent damage to the connector or PCB.
