42820-6223 - Molex

Description: 10.00mm Pitch Mini-Fit Sr. Header, Single Row, Right-Angle, 12 Circuits

Download 42820-6223 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
42820-6223 - Molex - PCB symbol
click to zoom
PCB Footprints

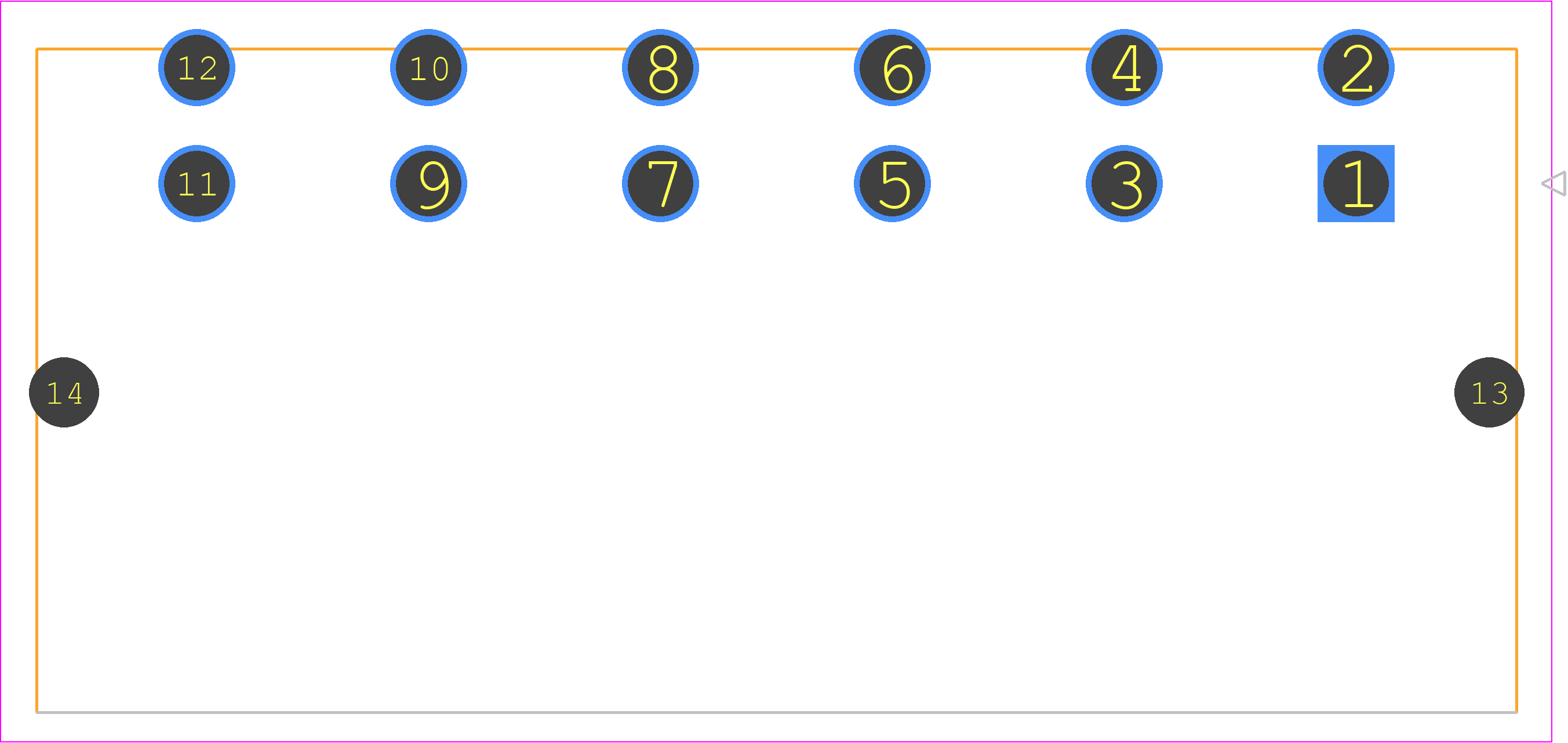

42820-6223 - Molex PCB footprint - Other - Other - 42820-6XXY_1
click to zoom
3D Models
42820-6223 - Molex - 3D model - Other - 42820-6XXY_1
click to zoom

42820-6223 Details

  • Manufacturer Part Number:

    42820-6223

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico, Puerto Rico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.87

  • Additional Feature:

    MINI-FIT SR, SHROUDED, POLARIZED

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.425 inch

  • Body Depth:

    1.126 inch

  • Body Length:

    2.512 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P6

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    1.5 mΩ

  • Contact Style:

    BLADE PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    2200VAC V

  • Durability:

    30 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    29.3568 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED NYLON

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Shell Material:

    GLASS FILLED POLYAMIDE46

  • Terminal Length:

    0.201 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    2.4464 N

42820-6223 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 42820-6223 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 42820-6223 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, high temperatures, or extreme humidity. For outdoor or harsh environment applications, consider using a connector with a higher IP rating or additional protection measures.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to ensure the wire size and insulation diameter are compatible with the connector's terminal design to prevent damage or poor connections. Consult with Molex or a qualified engineer for specific guidance.
  • Yes, the 42820-6223 connector requires a specific PCB layout to ensure proper mating and unmating. The datasheet provides guidelines for PCB layout, including recommended pad sizes, spacing, and keep-out areas. It's essential to follow these guidelines to prevent damage to the connector or PCB.
