The recommended PCB land pattern for the 42IF122-RC is a rectangular pad with dimensions of 2.5mm x 1.5mm, with a 1.5mm diameter hole in the center for the inductor's lead.
The 42IF122-RC is rated for operation up to 125°C, but derating is required above 85°C. Consult the datasheet for specific derating guidelines.
To minimize magnetic field interference, keep the 42IF122-RC at least 5mm away from sensitive components, and consider using a shielded inductor or a mu-metal shield if necessary.
The self-resonant frequency of the 42IF122-RC is typically around 100-150 MHz, but this can vary depending on the specific application and PCB layout.
The 42IF122-RC is rated for a maximum current of 1.2A, but it's recommended to derate the current to 0.8-1.0A for reliable operation. Consult the datasheet for specific current handling guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
42IF122-RC Overview

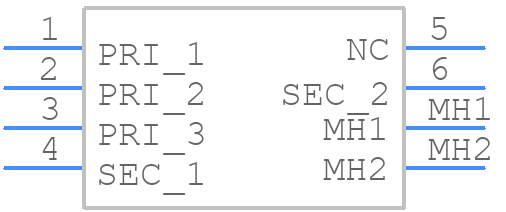

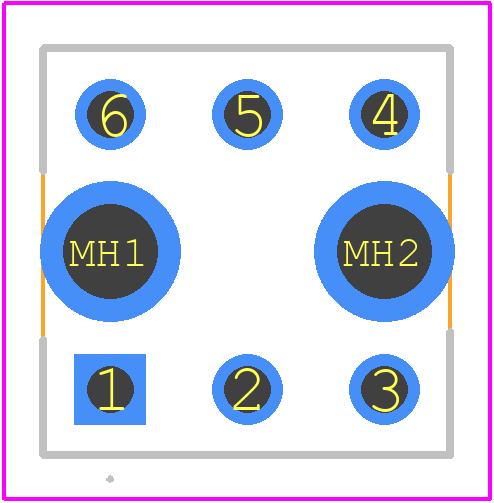

Use the download button to access the 42IF122-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 42IF1,
or try a keyword search, such as Other Transformers
