42TL008-RC footprint, schematic symbol and 3D model by Xicon

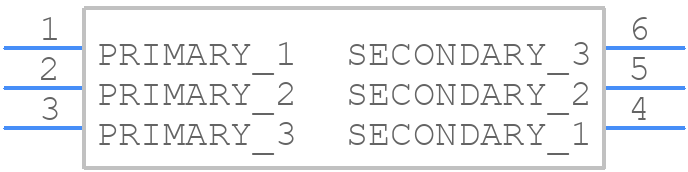

Symbol

click to zoom

PCB Footprints

42TL008-RC - Xicon PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 42TL008-RC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 42TL008-RC
Part Number 42TL008-RC
Manufacturer Xicon
Pin Count 6
Part Category Transformer
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 42TL008-RC
Released Date Apr 17, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

42TL008-RC Details

Manufacturer Part Number:
42TL008-RC
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Xicon Passive Components
YTEOL:
5
Application:
GENERAL PURPOSE
Height:
12.7 mm
Length:
15.01 mm
Mounting Feature:
THROUGH HOLE MOUNTED
Operating Frequency-Max:
3.4 kHz
Operating Frequency-Min:
0.3 kHz
Primary Impedance:
800 OHMS
Secondary Impedance:
8 OHMS
Surface Mount:
NO
Transformer Type:
GENERAL PURPOSE AUDIO TRANSFORMER
Width:
15.01 mm

42TL008-RC Frequently Asked Questions (FAQs)

The operating temperature range of the 42TL008-RC is -40°C to +125°C, as specified by the manufacturer.
Yes, the 42TL008-RC is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
The recommended storage condition for the 42TL008-RC is in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and humidity below 60%.
While the 42TL008-RC is a reliable component, it's not specifically designed for high-vibration applications. However, it can still be used in such environments with proper mounting and securing to prevent mechanical stress.
The 42TL008-RC meets the requirements for automotive applications, including AEC-Q200 qualification, making it suitable for use in automotive systems.

Trust Checks

Expert Contribution

System Verified

Community Approved

42TL008-RC Overview

Use the download button to access the 42TL008-RC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 42TL0, or try a keyword search, such as Audio Transformers
