The recommended land pattern for the 42TL016 is a rectangular pad with a size of 2.5mm x 1.25mm, with a 0.5mm radius corner and a 0.25mm spacing between pads.
The 42TL016 is rated for operation up to 125°C, but it's recommended to derate the component's power rating by 1.25% per degree Celsius above 85°C to ensure reliable operation.
To prevent ESD damage, handle the 42TL016 with ESD-safe materials, wear an ESD strap, and ensure that the assembly process is ESD-controlled. Avoid touching the component's pins or body.
The 42TL016 has an MSL rating of 3, which means it can withstand up to 168 hours of exposure to 30°C/60% RH without requiring baking or special handling.
The 42TL016 is designed to withstand vibrations up to 10G, but it's recommended to secure the component properly to the PCB using a suitable adhesive or mechanical fastening to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
42TL016 Overview

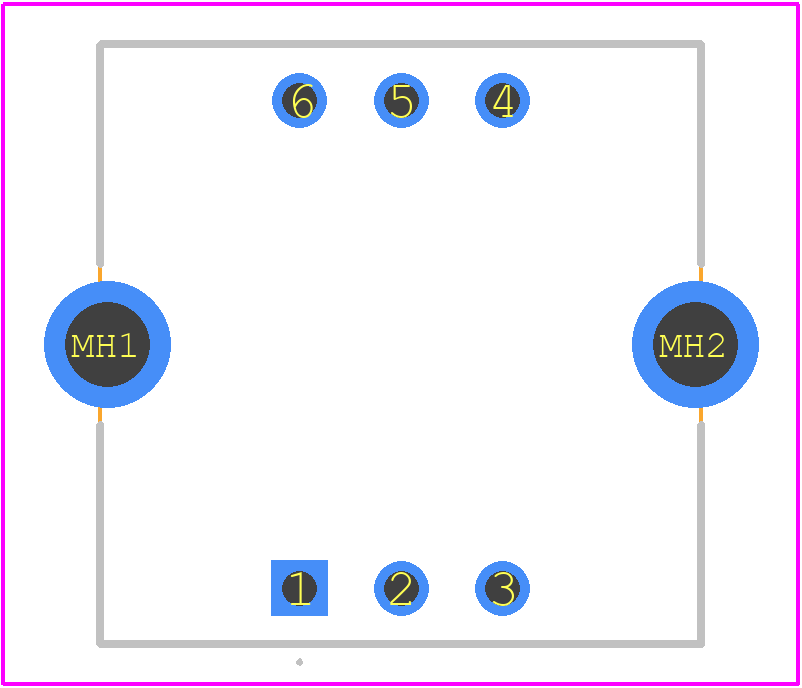

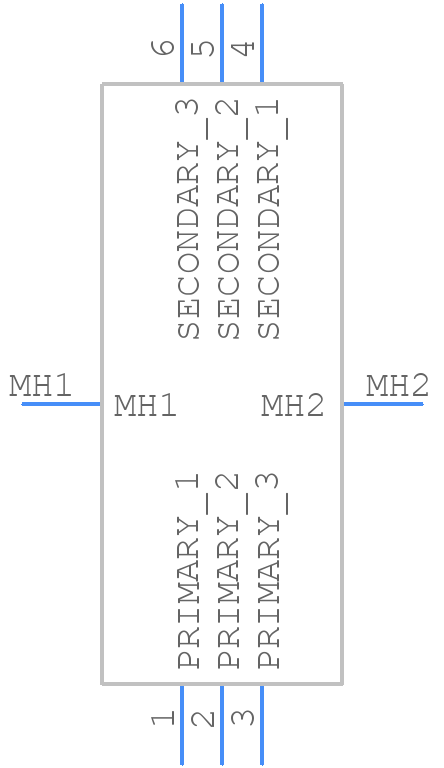

Use the download button to access the 42TL016 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 42TL0,
or try a keyword search, such as Other Transformers
