The recommended land pattern for the 42TL018-RC can be found in the Xicon Passive Components' application note or by contacting their technical support. A general guideline is to follow the IPC-7351 standard for surface mount components.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the derating curves and thermal resistance to ensure the component can handle the specific high-temperature environment. Consult with Xicon Passive Components' technical support for guidance.
To ensure optimal reliability and shelf life, follow proper storage and handling procedures, such as storing the components in a dry, cool place, avoiding mechanical stress, and using anti-static packaging and handling materials.
Xicon Passive Components recommends following the IPC-J-STD-020 standard for soldering profiles. A typical profile would include a peak temperature of 240°C to 250°C, with a dwell time of 30 seconds to 60 seconds. However, it's best to consult with their technical support for specific guidance.
While the component is designed to operate in a variety of environments, it's essential to consider the moisture sensitivity level (MSL) and follow proper handling and storage procedures to prevent moisture-related issues. Consult with Xicon Passive Components' technical support for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
42TL018-RC Overview

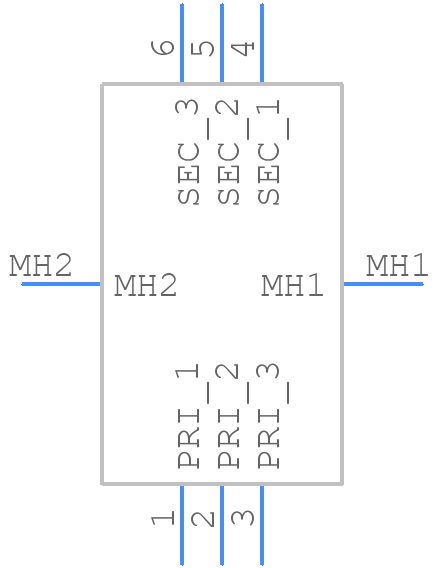

Use the download button to access the 42TL018-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 42TL0,
or try a keyword search, such as Audio Transformers
