42TL019-RC - Xicon

Description: Audio Transformers / Signal Transformers XFMR 10KCT/600CT 12VDC , 300 Hz to 3.4 KHz , 600 Ohms , -30°C ~ +80°C

Download 42TL019-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

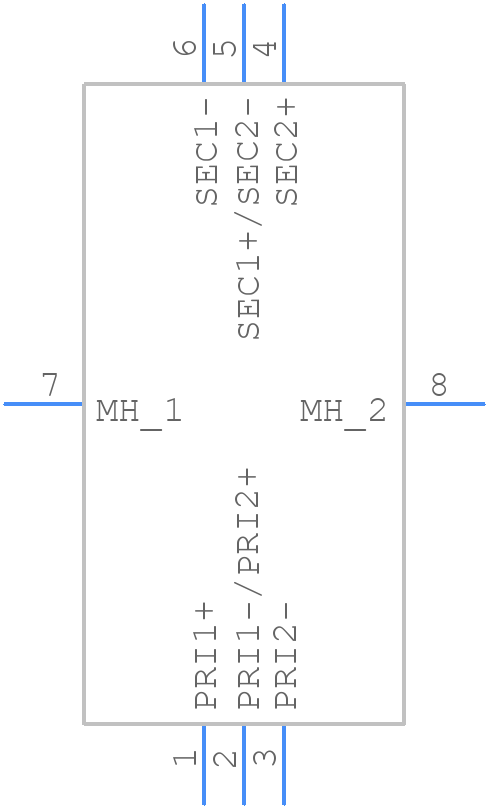

42TL019-RC - Xicon - PCB symbol
click to zoom
PCB Footprints

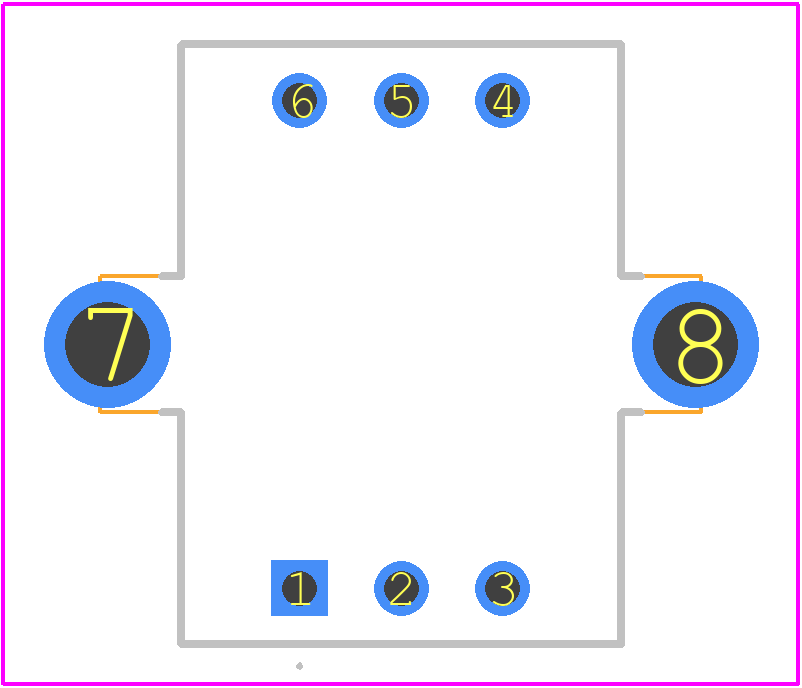

42TL019-RC - Xicon PCB footprint - Other - Other - 42TL019-RC-4
click to zoom
3D Models
42TL019-RC - Xicon - 3D model - Other - 42TL019-RC-4
click to zoom

42TL019-RC Details

  • Manufacturer Part Number:

    42TL019-RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.20.00

  • Manufacturer:

    Xicon Passive Components

  • YTEOL:

    5

  • Application:

    GENERAL PURPOSE

  • Height:

    12.7 mm

  • Length:

    15.01 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Frequency-Max:

    3.4 kHz

  • Operating Frequency-Min:

    0.3 kHz

  • Primary Impedance:

    10000 OHMS

  • Secondary Impedance:

    600 OHMS

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Width:

    15.01 mm

42TL019-RC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 42TL019-RC is between 230°C to 250°C for a maximum of 3 seconds.
  • Yes, the 42TL019-RC is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of hazardous substances in electrical and electronic equipment.
  • The operating temperature range for the 42TL019-RC is -40°C to +125°C.
  • Yes, the 42TL019-RC is designed to withstand high-vibration environments, making it suitable for use in applications such as automotive, aerospace, and industrial control systems.
  • Yes, the 42TL019-RC is compatible with lead-free soldering processes, making it suitable for use in modern electronic assemblies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

42TL019-RC Overview

Use the download button to access the 42TL019-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 42TL0, or try a keyword search, such as Audio Transformers
