42TU003-RC - Xicon

Description: Audio Transformers / Signal Transformers XFMR EI-24 1.2K-8CT

Download 42TU003-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

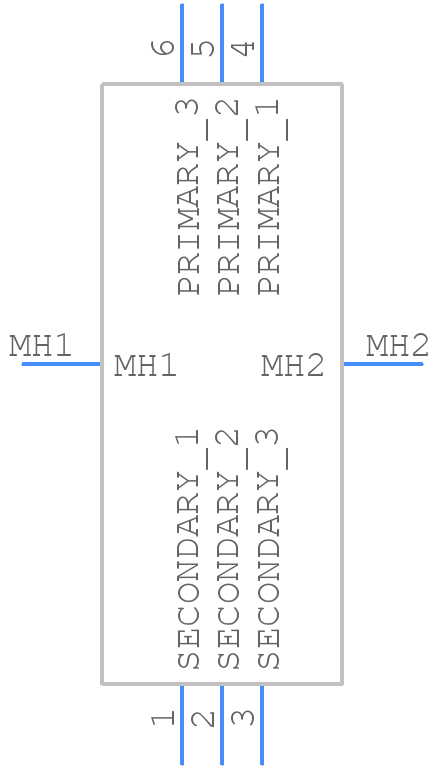

42TU003-RC - Xicon - PCB symbol
click to zoom
PCB Footprints

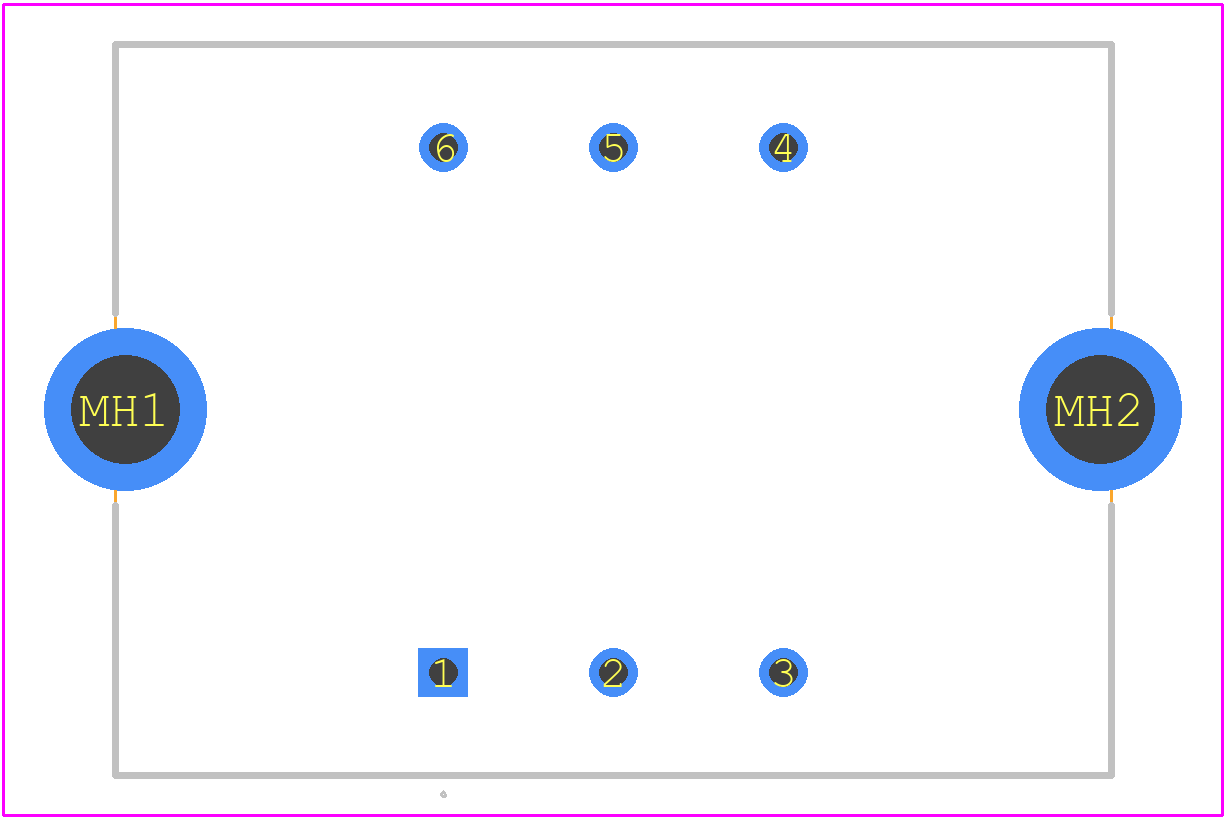

42TU003-RC - Xicon PCB footprint - Other - Other - 42TU003-RC-5
click to zoom
3D Models
42TU003-RC - Xicon - 3D model - Other - 42TU003-RC-5
click to zoom

42TU003-RC Details

  • Manufacturer Part Number:

    42TU003-RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Xicon Passive Components

  • YTEOL:

    5

  • Application:

    GENERAL PURPOSE

  • Height:

    18.796 mm

  • Length:

    24.892 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Frequency-Max:

    0.3 kHz

  • Operating Frequency-Min:

    3.4 kHz

  • Primary Impedance:

    1200 OHMS

  • Secondary Impedance:

    8 OHMS

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Width:

    18.288 mm

42TU003-RC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 42TU003-RC is between 230°C to 250°C for a maximum of 3 seconds.
  • Yes, the 42TU003-RC is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The operating temperature range for the 42TU003-RC is -40°C to 125°C.
  • Yes, the 42TU003-RC is designed to withstand high-vibration environments, making it suitable for use in automotive, industrial, and other applications where vibration is a concern.
  • Yes, the 42TU003-RC is compatible with lead-free soldering processes, making it suitable for use in modern electronics manufacturing.
