42TU200-RC - Xicon

Description: Audio Transformers / Signal Transformers XFMR OUT 200CT-8 3.2 , 100V , 460mW , 200 Ohms , 300 Hz to 3.4 kHz

Download 42TU200-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

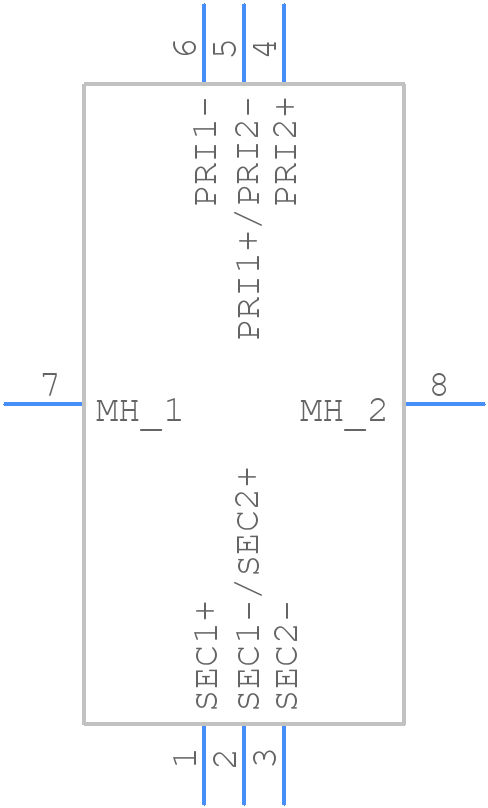

42TU200-RC - Xicon - PCB symbol
click to zoom
PCB Footprints

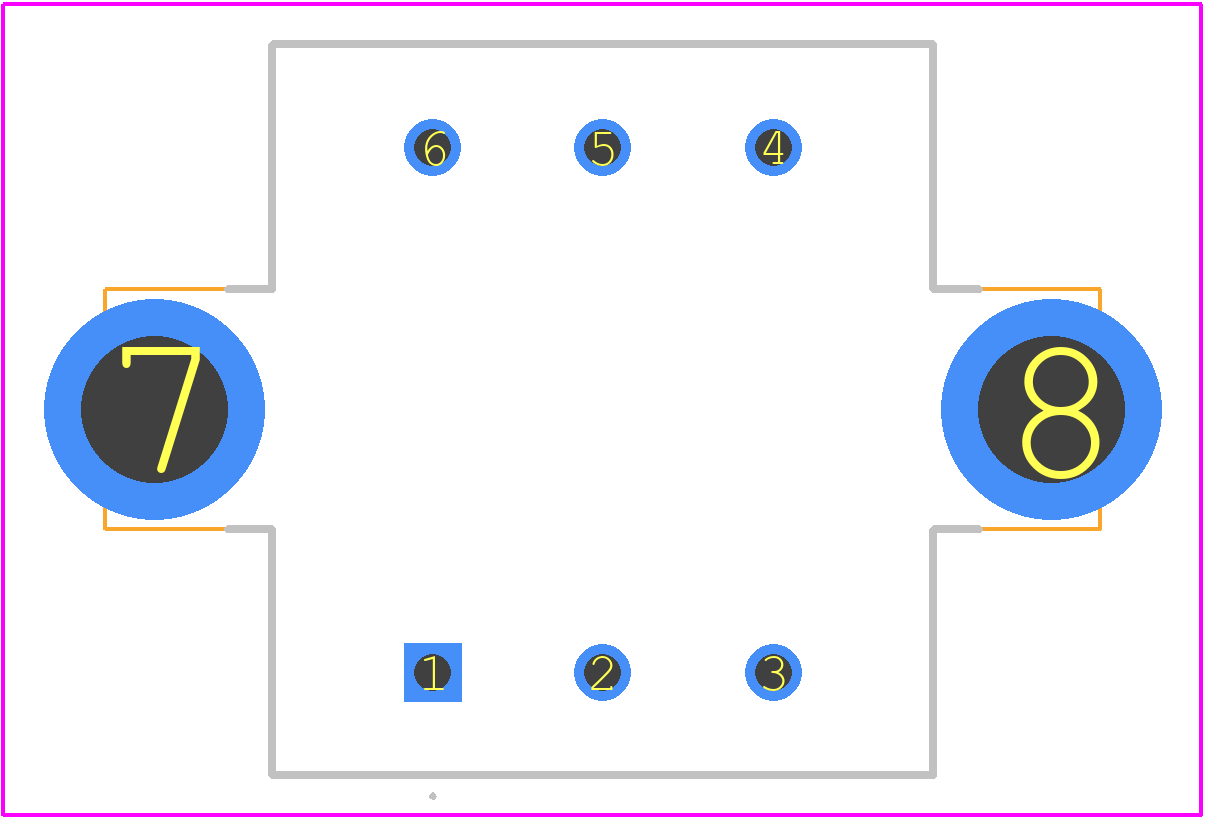

42TU200-RC - Xicon PCB footprint - Other - Other - 42TU200-RC-5
click to zoom
3D Models
42TU200-RC - Xicon - 3D model - Other - 42TU200-RC-5
click to zoom

42TU200-RC Details

  • Manufacturer Part Number:

    42TU200-RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Xicon Passive Components

  • YTEOL:

    5

  • Application:

    GENERAL PURPOSE

  • Height:

    18.796 mm

  • Length:

    24.892 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Frequency-Max:

    0.3 kHz

  • Operating Frequency-Min:

    3.4 kHz

  • Primary Impedance:

    200 OHMS

  • Secondary Impedance:

    8 OHMS

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Width:

    18.288 mm

42TU200-RC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 42TU200-RC is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 42TU200-RC is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The operating temperature range for the 42TU200-RC is -40°C to +125°C.
  • Yes, the 42TU200-RC is designed to withstand high-vibration applications, making it suitable for use in industrial, automotive, and other environments where vibration is a concern.
  • The moisture sensitivity level (MSL) of the 42TU200-RC is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

42TU200-RC Overview

Use the download button to access the 42TU200-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 42TU2, or try a keyword search, such as Audio Transformers
