43-01188 footprint, schematic symbol and 3D model by CONEC

Symbol

click to zoom

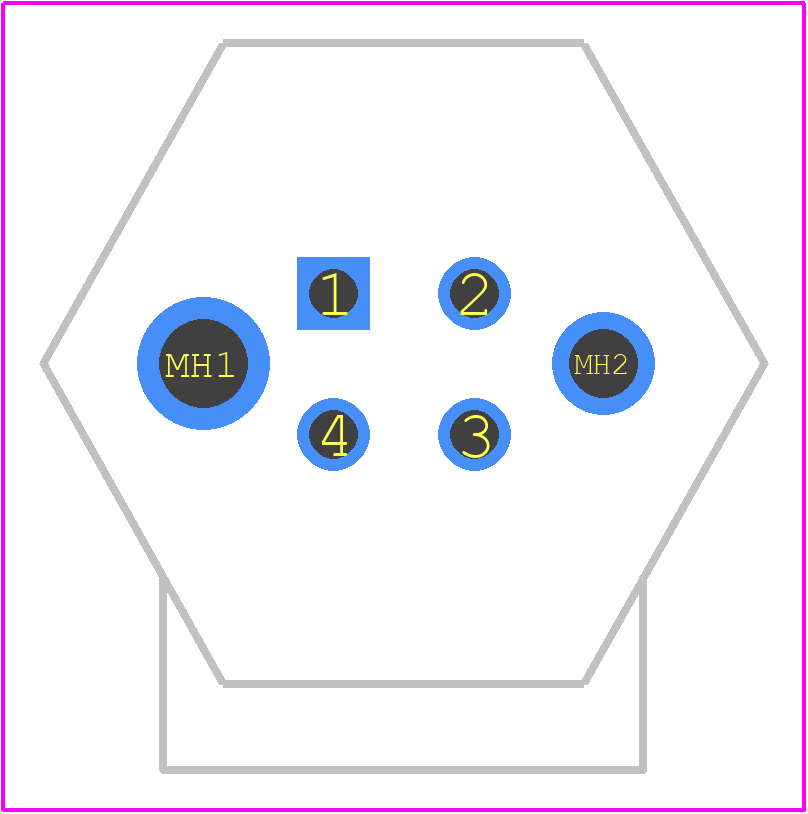

PCB Footprints

43-01188 - CONEC PCB footprint - Other - Other - 43-01188

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 43-01188
Part Number 43-01188
Manufacturer CONEC
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - 43-01188
Released Date Mar 13, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

43-01188 Details

Manufacturer Part Number:
43-01188
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Conec Corporation
YTEOL:
8
Additional Feature:
RATED CURRENT(SIGNAL): 4A; RATED VOLTAGE: 60V
Backshell Type:
SOLID
Body/Shell Style:
SOCKET
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Termination:
Gold (Au) over Nickel (Ni)
Coupling Type:
THREADED
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
GLASS FILLED POLYAMIDE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
Option:
GENERAL PURPOSE
Reference Standard:
IEC;UL
Shell Finish:
NICKEL
Shell Material:
BRASS
Termination Type:
SOLDER
Total Number of Contacts:
5

43-01188 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
Yes, the 43-01188 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
Yes, the 43-01188 connector has an IP67 rating, making it suitable for outdoor use and resistant to dust and water ingress.
The operating temperature range for the 43-01188 connector is -40°C to 125°C, making it suitable for a wide range of applications.
Yes, the 43-01188 connector is designed to accommodate shielded cables, with a provision for grounding the shield.

Trust Checks

Expert Contribution

System Verified

Community Approved

43-01188 Overview

Use the download button to access the 43-01188 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 43-01, or try a keyword search, such as Other Circular Connectors
