43-01197 footprint, schematic symbol and 3D model by CONEC

Symbol

click to zoom

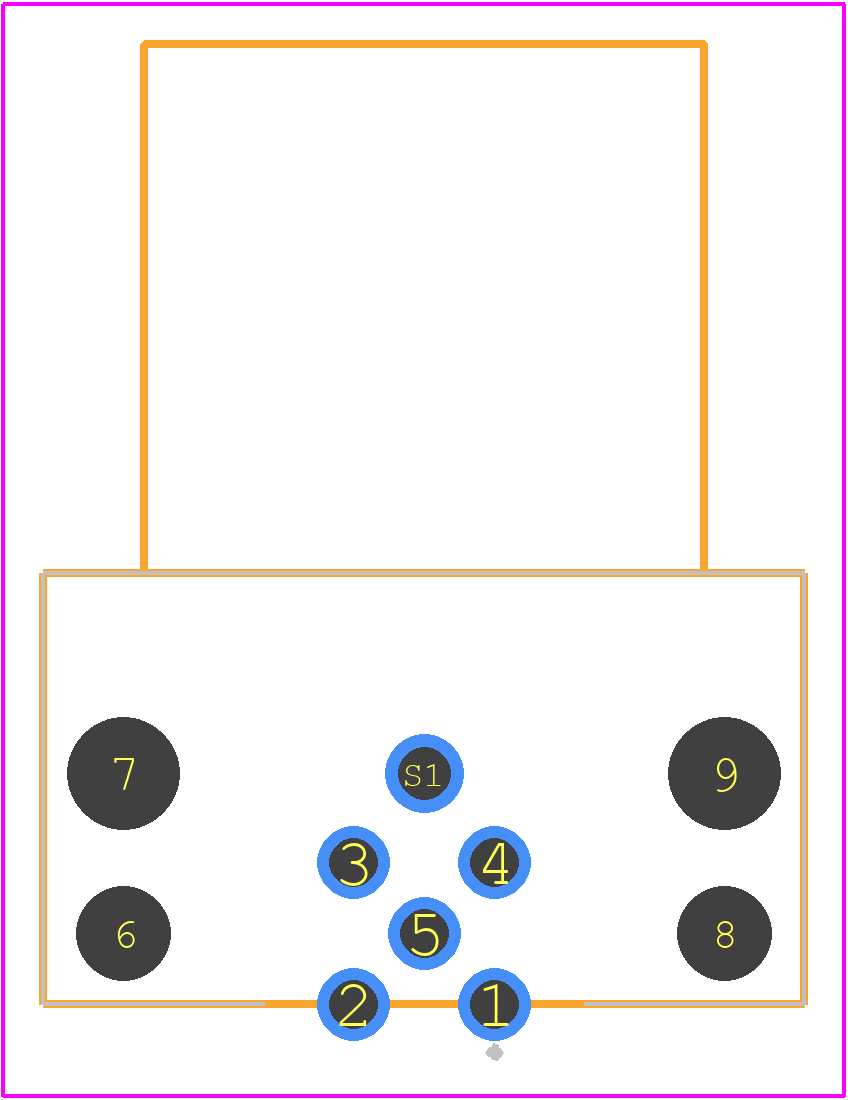

PCB Footprints

43-01197 - CONEC PCB footprint - Other - Other - 43-01197

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 43-01197
Part Number 43-01197
Manufacturer CONEC
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - 43-01197
Released Date Sep 7, 2019
Last Modified Date Mar 26, 2025 10:12 PM UTC
Pinout / Pin List Click Here (Member Only)

43-01197 Details

Manufacturer Part Number:
43-01197
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Conec Corporation
Additional Feature:
STANDARD: IEC 60529, SHROUDED
Backshell Type:
SOLID
Body Depth:
1.016 inch
Body Diameter:
0.543 inch
Body/Shell Style:
SOCKET
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Gold (Au)
Contact Gender:
FEMALE
Contact Material:
COPPER ZINC
Coupling Type:
SNAP
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
YES
Insulator Material:
GLASS FILLED POLYAMIDE
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Shell Finish:
NICKEL
Shell Material:
COPPER-ZINC ALLOY
Termination Type:
SOLDER
Total Number of Contacts:
4

43-01197 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw threads of the 43-01197 connector.
Yes, the 43-01197 connector is designed to withstand high-vibration environments and is suitable for applications with vibration levels up to 10g.
Yes, the 43-01197 connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C and humidity levels up to 95% RH.
The 43-01197 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
The 43-01197 connector is designed to be compatible with other connectors that meet the IEC 61076-3-101 standard, but compatibility with specific connectors from other manufacturers should be verified.

Trust Checks

Expert Contribution

System Verified

Community Approved

43-01197 Overview

Use the download button to access the 43-01197 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 43-01, or try a keyword search, such as Other Circular Connectors
