43-01201 - CONEC

Description: Circular Metric Connectors 4P R/A PCB W/GND M12 FRONT MNT SCKT

Download 43-01201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43-01201 - CONEC - PCB symbol
click to zoom

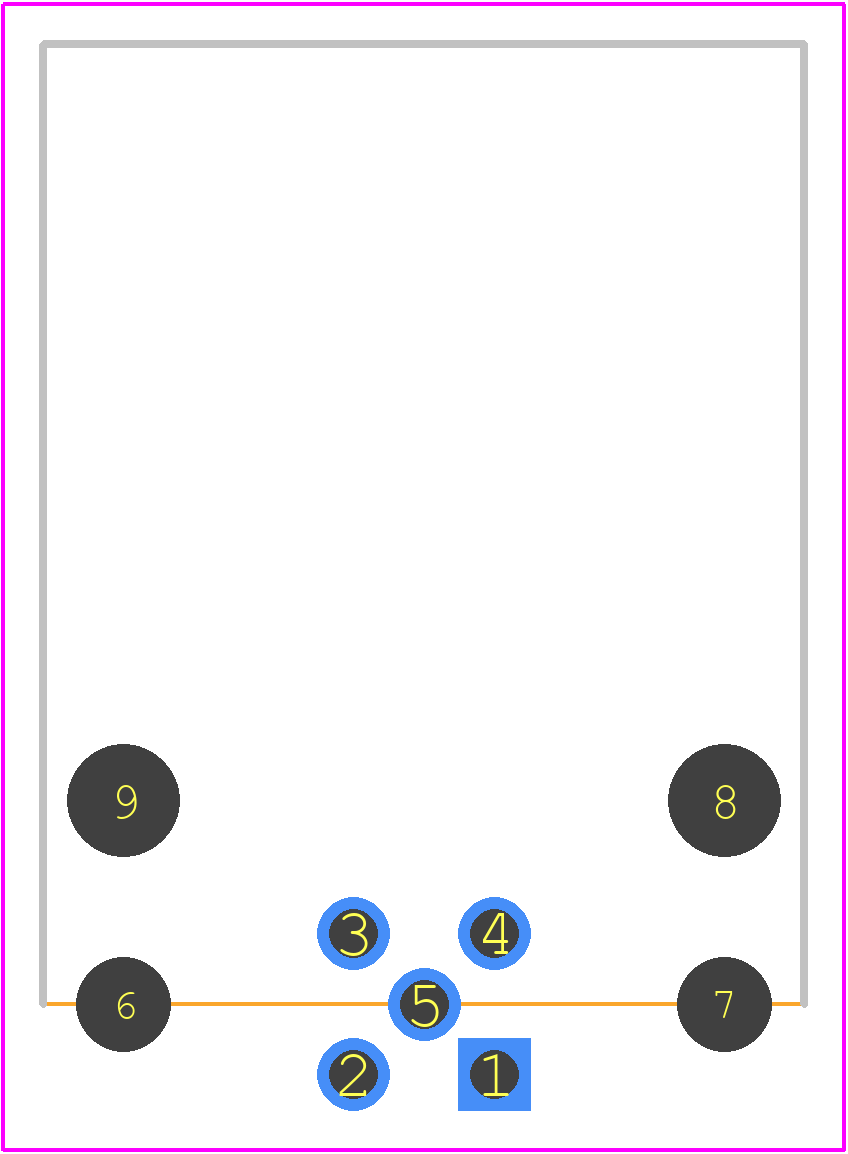

PCB Footprints
43-01201 - CONEC PCB footprint - Other - Other - 43-01201
click to zoom
3D Models
43-01201 - CONEC - 3D model - Other - 43-01201
click to zoom

43-01201 Details

  • Manufacturer Part Number:

    43-01201

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Conec Corporation

  • Backshell Type:

    SOLID

  • Body Diameter:

    0.551 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Gender:

    FEMALE

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE6.6

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

43-01201 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw threads to ensure proper mating and to prevent damage to the connector.
  • Yes, the 43-01201 connector is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
  • The operating temperature range for the 43-01201 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the connector's performance may degrade at extreme temperatures.
  • The 43-01201 connector has a sealed design that provides protection against moisture and contaminants. However, it's recommended to follow the manufacturer's guidelines for environmental considerations and to consult with a qualified engineer for specific application requirements.
  • The 43-01201 connector is rated for a minimum of 500 mating cycles. However, the actual lifespan may vary depending on factors such as usage, environment, and maintenance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43-01201 Overview

Use the download button to access the 43-01201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43-01, or try a keyword search, such as Other Circular Connectors
