43-01204 footprint, schematic symbol and 3D model by CONEC

Symbol

click to zoom

PCB Footprints

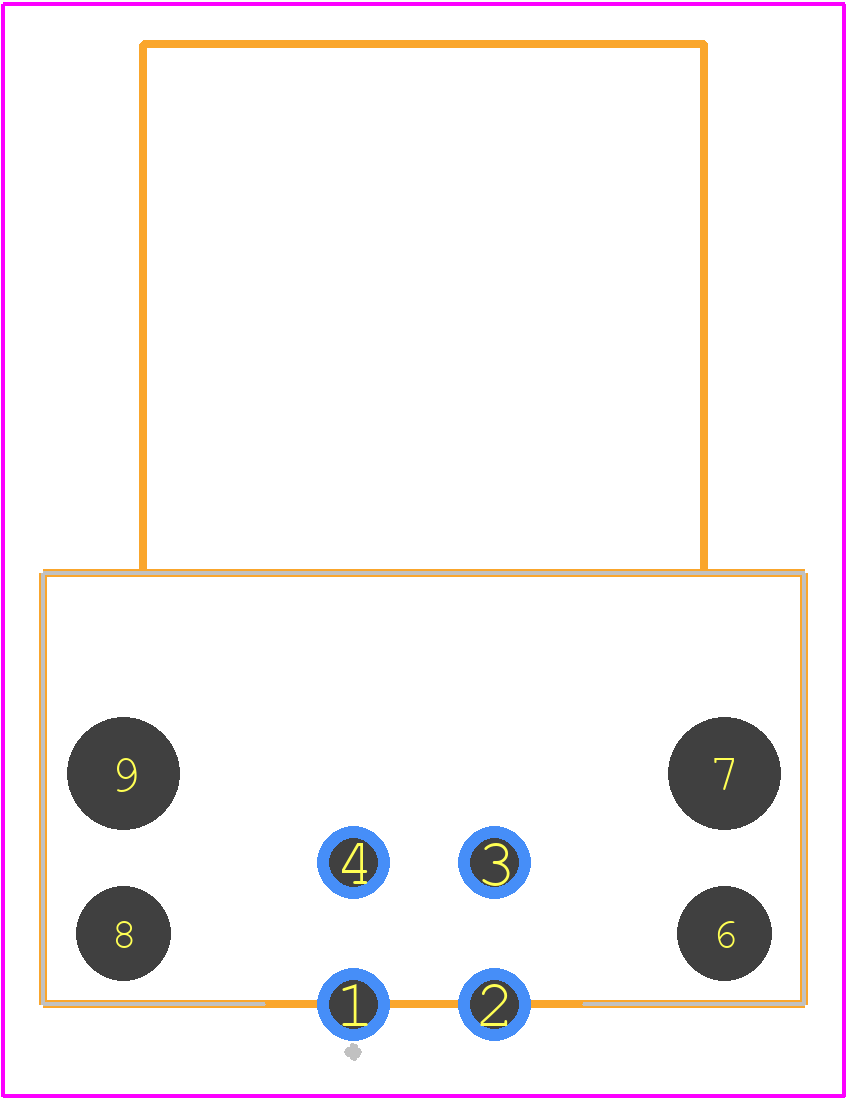

43-01204 - CONEC PCB footprint - Other - Other - 43-01204

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 43-01204
Part Number 43-01204
Manufacturer CONEC
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - 43-01204
Released Date Aug 7, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

43-01204 Details

Manufacturer Part Number:
43-01204
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Conec Corporation
Backshell Type:
SOLID
Body/Shell Style:
SOCKET
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Mating:
GOLD OVER NICKEL
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
COPPER ZINC
Coupling Type:
THREADED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
BRASS
Termination Type:
SOLDER
Total Number of Contacts:
4

43-01204 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw threads of the 43-01204 connector.
Yes, the 43-01204 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, industrial, and transportation systems.
Yes, the 43-01204 connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals and fluids.
The 43-01204 connector is designed to operate up to 3 GHz, making it suitable for high-frequency applications such as RF and microwave systems.
Yes, the 43-01204 connector is designed to operate in temperatures ranging from -55°C to 125°C, making it suitable for use in high-temperature applications.

Trust Checks

Expert Contribution

System Verified

Community Approved

43-01204 Overview

Use the download button to access the 43-01204 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 43-01, or try a keyword search, such as Other Circular Connectors
