43-01206 - CONEC

Description: Conn M12 Circular PIN 5 POS Solder RA Thru-Hole 5 Terminal 1 Port

Download 43-01206 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43-01206 - CONEC - PCB symbol
click to zoom
PCB Footprints

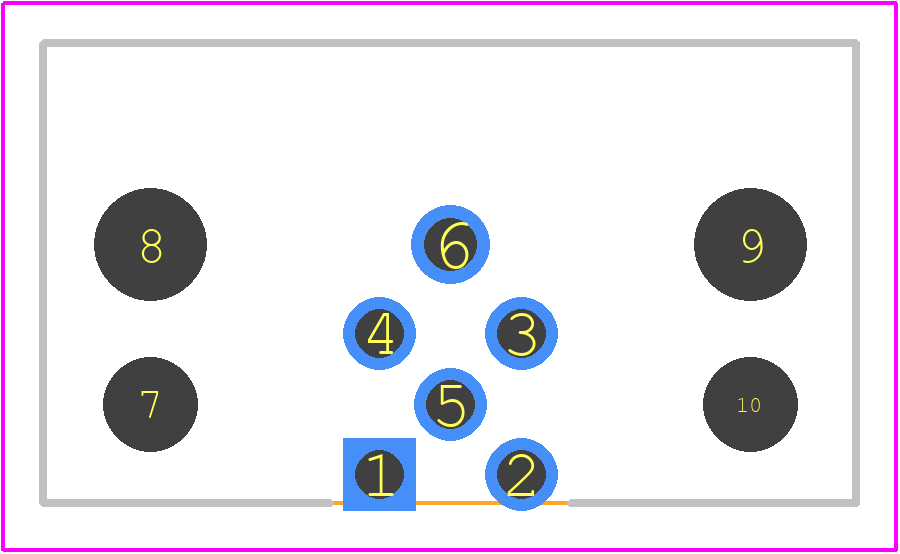

43-01206 - CONEC PCB footprint - Other - Other - 43-01206
click to zoom
3D Models
43-01206 - CONEC - 3D model - Other - 43-01206
click to zoom

43-01206 Details

  • Manufacturer Part Number:

    43-01206

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Conec Corporation

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ZINC

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

43-01206 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 43-01206 connector is -40°C to 125°C.
  • Yes, the 43-01206 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • The 43-01206 connector has a mating cycle life of 500 cycles, ensuring reliable connections even in demanding applications.
  • Yes, the 43-01206 connector is designed to be resistant to moisture, chemicals, and other environmental factors, making it suitable for use in harsh environments.
  • The typical lead time for delivery of the 43-01206 connector varies depending on the quantity and availability, but it is usually around 6-12 weeks.
