43-02638 - CONEC

Description: Circular Metric Connectors M12 A-code 8P FML RA Unshld Frnt Mnt, SP

Download 43-02638 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43-02638 - CONEC - PCB symbol
click to zoom
PCB Footprints

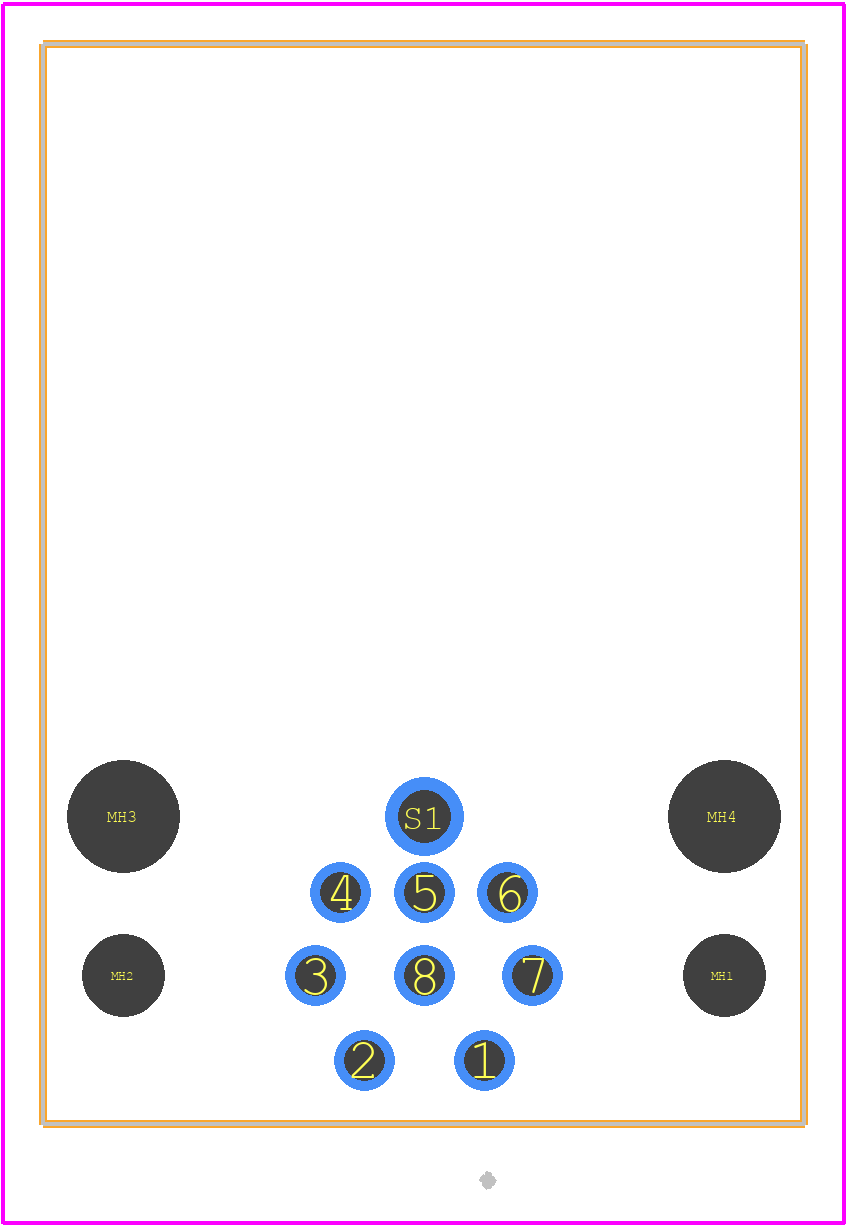

43-02638 - CONEC PCB footprint - Other - Other - 43-02638-3
click to zoom
3D Models
43-02638 - CONEC - 3D model - Other - 43-02638-3
click to zoom

43-02638 Details

  • Manufacturer Part Number:

    43-02638

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Conec Corporation

  • Additional Feature:

    RATED CURRENT(SIGNAL): 2A; RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

43-02638 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 43-02638 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the 43-02638 connector has an IP67 rating, making it suitable for outdoor use and resistant to dust and water ingress.
  • The 43-02638 connector has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the 43-02638 connector is designed to accommodate shielded cables, with a provision for grounding the shield.
