43-02639 - CONEC

Description: Circular Metric Connectors M12 A-code 8P FML RA Shlded Frnt Mnt SP

Download 43-02639 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43-02639 - CONEC - PCB symbol
click to zoom
PCB Footprints

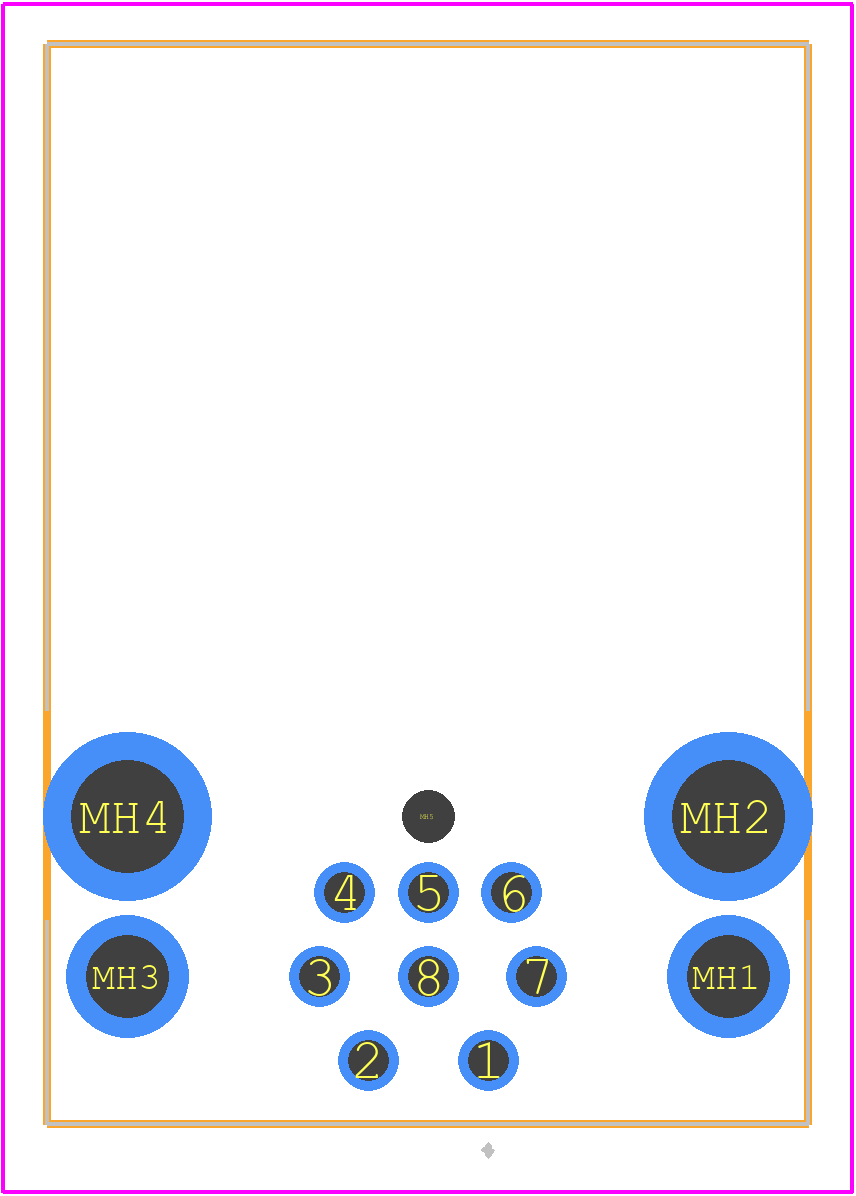

43-02639 - CONEC PCB footprint - Other - Other - 43-02639-3
click to zoom
3D Models
43-02639 - CONEC - 3D model - Other - 43-02639-3
click to zoom

43-02639 Details

  • Manufacturer Part Number:

    43-02639

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Conec Corporation

  • Additional Feature:

    RATED CURRENT(SIGNAL): 2A; RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

43-02639 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to consult the datasheet or contact Conec Corporation for specific guidance.
  • Yes, the 43-02639 connector is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in harsh environments. However, it's crucial to ensure proper mounting and secure wiring to prevent damage.
  • The 43-02639 connector has an operating temperature range of -40°C to 125°C. While it can withstand high temperatures, it's essential to consider the specific application and ensure the connector is used within its rated temperature range.
  • The 43-02639 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 43-02639 connector is designed to accommodate shielded cables. The connector's shielded design helps to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).
