43-02739 - CONEC

Description: Circular Metric Connectors M12 A-code 8P FML RA Unshld Back Mnt SP

Download 43-02739 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43-02739 - CONEC - PCB symbol
click to zoom

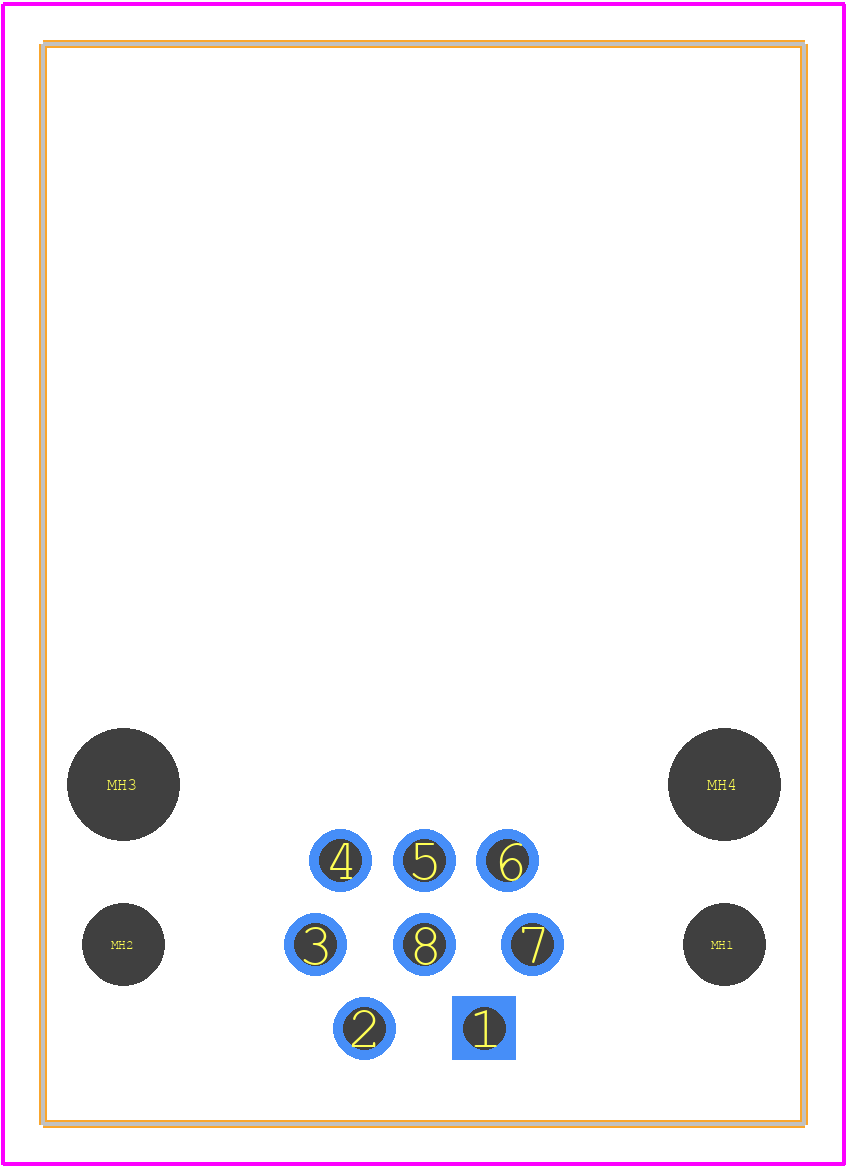

PCB Footprints
43-02739 - CONEC PCB footprint - Other - Other - 43-02739-1
click to zoom
3D Models
43-02739 - CONEC - 3D model - Other - 43-02739-1
click to zoom

43-02739 Details

  • Manufacturer Part Number:

    43-02739

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Conec Corporation

  • Additional Feature:

    RATED CURRENT(SIGNAL): 2A; RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

43-02739 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 43-02739 connector is -40°C to 125°C.
  • Yes, the 43-02739 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • The 43-02739 connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
  • Yes, the 43-02739 connector is designed to be resistant to moisture, corrosion, and chemicals, making it suitable for use in harsh environments.
  • The typical lead time for delivery of the 43-02739 connector varies depending on the quantity and availability, but it is usually around 6-12 weeks.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43-02739 Overview

Use the download button to access the 43-02739 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43-02, or try a keyword search, such as Other Circular Connectors
