The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
Yes, the 43-02740 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and aerospace applications.
While the datasheet specifies AWG 24-20, the connector can accommodate other wire sizes with the use of adapters or specialized contacts. However, it's recommended to consult with Conec Corporation or a qualified engineer to ensure compatibility.
The 43-02740 connector is rated for operation in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of environments.
Yes, the 43-02740 connector is compliant with both RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, ensuring it meets environmental and safety standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
43-02740 Overview

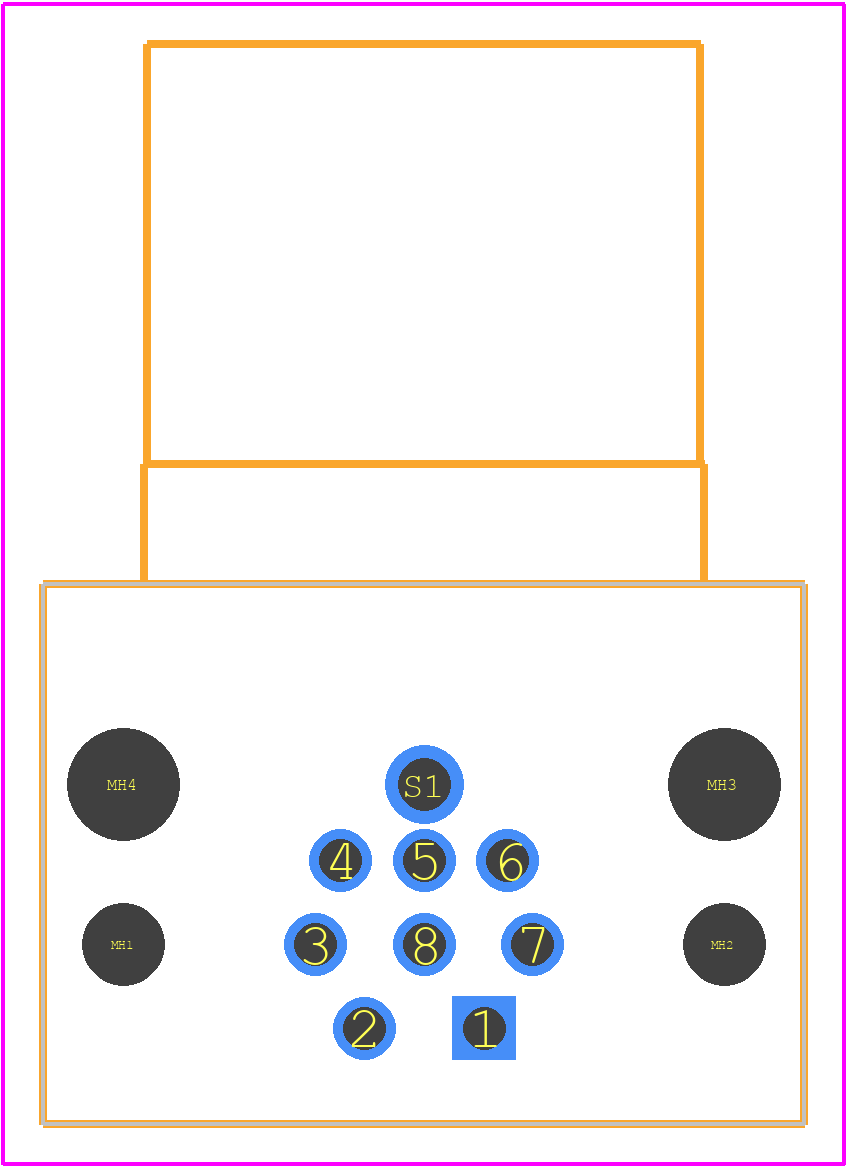

Use the download button to access the 43-02740 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43-02,
or try a keyword search, such as Other Circular Connectors
