4300.0104 - SCHURTER

Description: POWER ENTRY, PLUG, 2.5A, 250V, QC; Product Range:2570 Series; Gender:Plug; Voltage Rating:250V; Current Rating:2.5A; Connector Mounting:Panel Mount; Contact Termination Type:Quick Connect RoHS Compliant: Yes

Download 4300.0104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
4300.0104 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

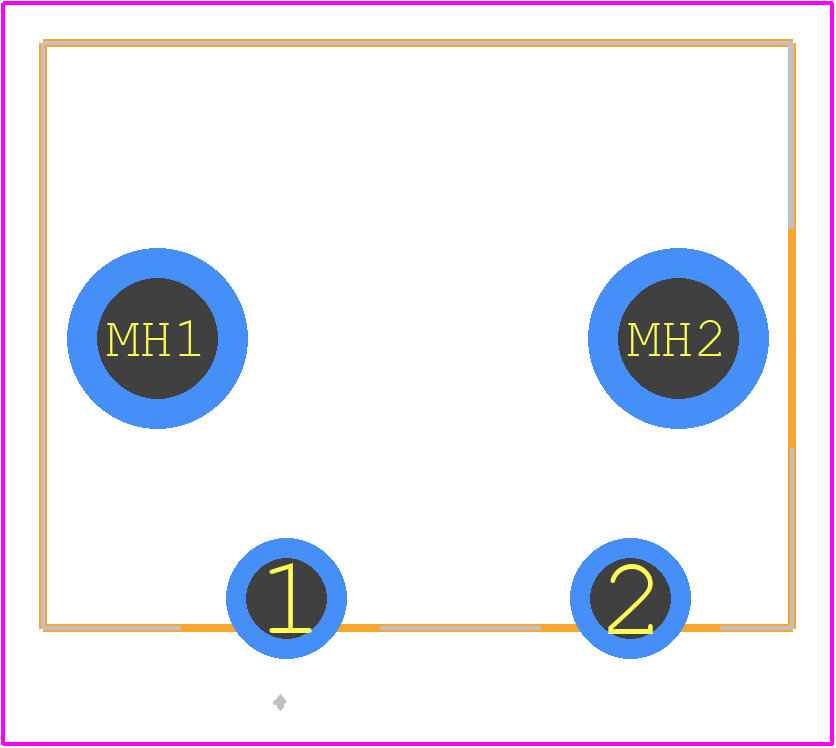

4300.0104 - SCHURTER PCB footprint - Other - Other - 4300.0104-4
click to zoom
3D Models
4300.0104 - SCHURTER - 3D model - Other - 4300.0104-4
click to zoom

4300.0104 Details

  • Manufacturer Part Number:

    4300.0104

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks, 3 Days

  • Manufacturer:

    Schurter Electronic Components

  • Additional Feature:

    STANDARD : CSA C22.2, IEC 60320, UL 498

  • Body Breadth:

    0.811 inch

  • Body Depth:

    2.657 inch

  • Body Length:

    1.114 inch

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Gender:

    MALE

  • Coupling Type:

    SNAP

  • Insulator Material:

    POLYAMIDE6

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Reference Standard:

    CSA; UL

  • Termination Type:

    QUICK CONNECT

  • Total Number of Contacts:

    3

4300.0104 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's application notes.
  • No, the 4300.0104 is designed for use with fuse links up to 32V DC, and using it with higher voltage ratings may compromise safety and reliability.
  • Yes, the 4300.0104 is designed to meet the requirements of automotive applications, including high temperatures and vibrations.
  • Yes, the 4300.0104 is rated for operation up to 125°C, making it suitable for use in high-temperature environments.
  • The recommended wire size for the screw terminals is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

4300.0104 Overview

Use the download button to access the 4300.0104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 4300., or try a keyword search, such as Mains Power Connectors
