STANDARD: IEC/EN 60320-1/C14; CSA 22.2; UL 498, UL 94 V-0; VDE
Body/Shell Style:
SOCKET
Connector Type:
MAINS POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Coupling Type:
SNAP
DIN Conformance:
NO
IEC Conformance:
YES
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mains Connector Rating:
10A, 250VAC
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SCREW
Total Number of Contacts:
3
4301.3204 Frequently Asked Questions (FAQs)
Schurter provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
While the 4301.3204 is a robust component, it's still important to consider the vibration specifications in your application. Schurter recommends following the IEC 60068-2-6 standard for vibration testing. If your application exceeds these specifications, you may need to consider additional mechanical fixation or damping measures.
The 4301.3204 is a safety-approved component, but it's essential to review the specific certifications and approvals (e.g., UL, ENEC, CQC) to ensure they meet your application's requirements. You may also need to consider additional testing or certification for your specific product or market.
Schurter recommends storing the 4301.3204 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. When handling the component, use anti-static precautions and avoid touching the pins or sensitive areas to prevent damage.
The 4301.3204 has a moisture sensitivity level (MSL) rating of 3, which means it can withstand some humidity. However, it's still important to follow proper sealing and conformal coating procedures to ensure the component's reliability in humid or wet environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
4301.3204 Overview

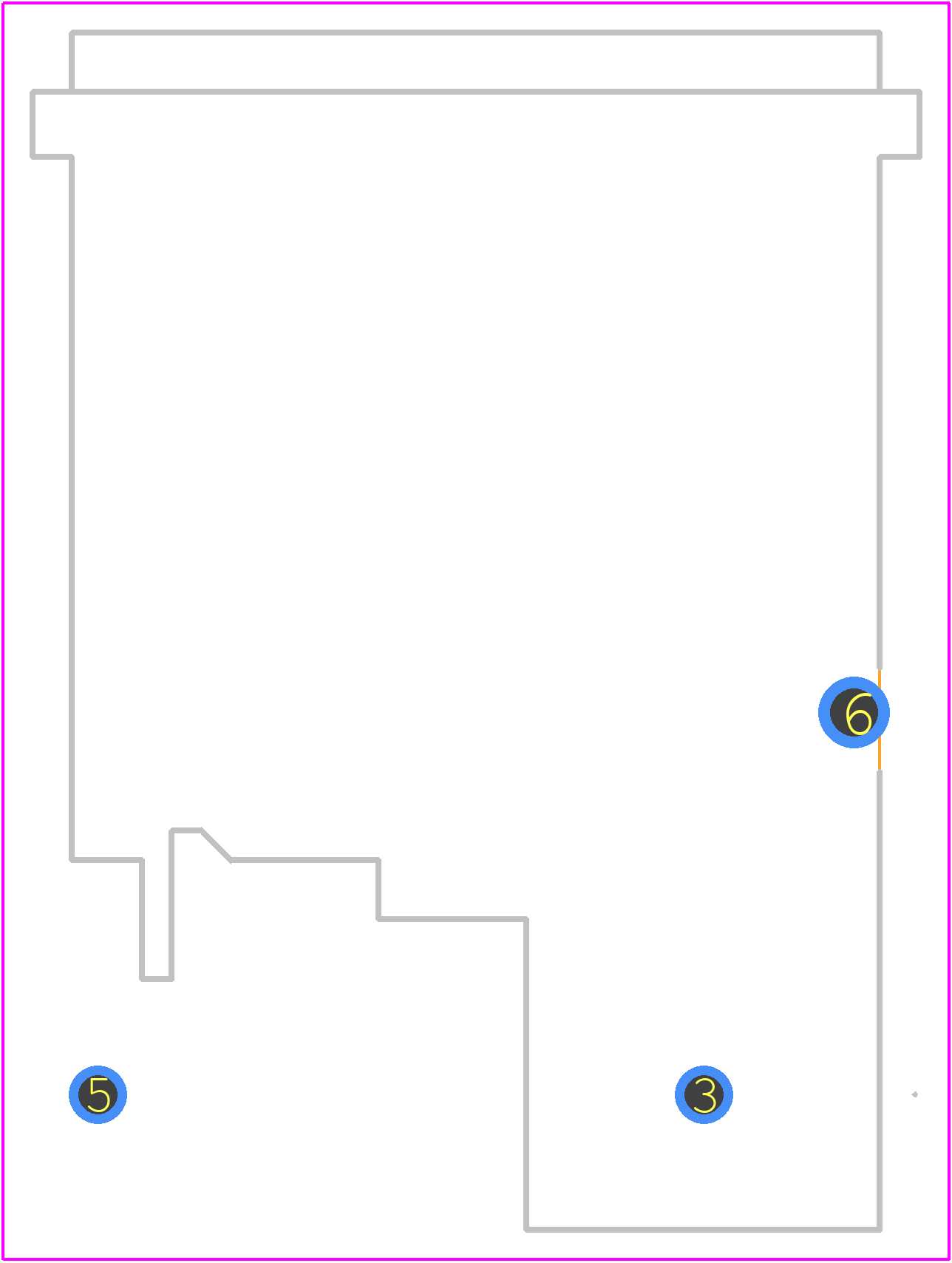

Use the download button to access the 4301.3204 schematic symbol, PCB footprint, and 3D model.
