43045-1811 - Molex

Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 18 Circuits, with Solder Tab

Download 43045-1811 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43045-1811 - Molex - PCB symbol
click to zoom
PCB Footprints

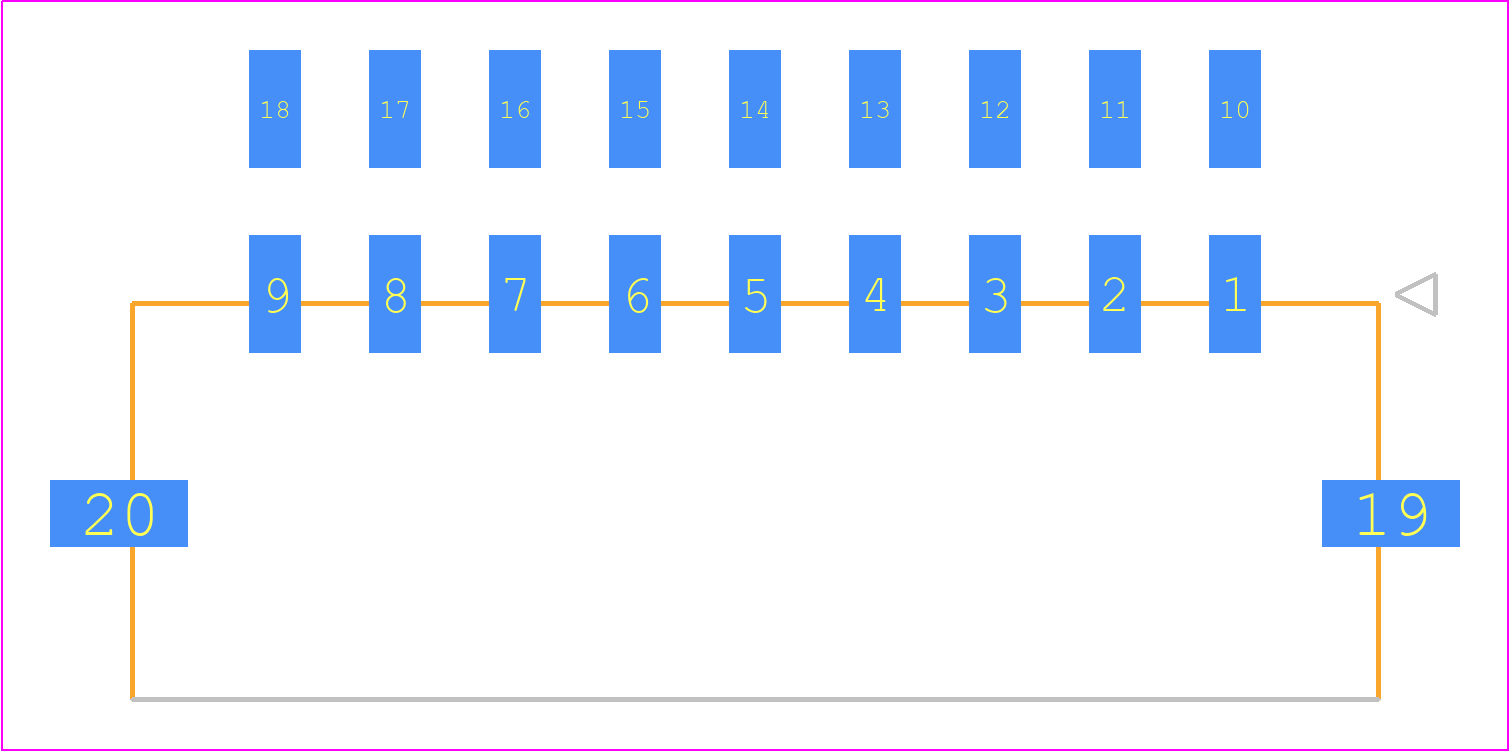

43045-1811 - Molex PCB footprint - Other - Other - 43045-18YY_09101192
click to zoom
3D Models
43045-1811 - Molex - 3D model - Other - 43045-18YY_09101192
click to zoom

43045-1811 Details

  • Manufacturer Part Number:

    43045-1811

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.85

  • Body Breadth:

    0.345 inch

  • Body Depth:

    0.606 inch

  • Body Length:

    1.207 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

43045-1811 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 43045-1811 connector is designed to withstand high-vibration environments, making it suitable for industrial and automotive applications.
  • The connector is rated for operating temperatures up to 105°C (221°F). However, it's recommended to derate the current rating at higher temperatures to ensure reliable operation.
  • The 43045-1811 connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
  • While the connector is designed for AWG 18-14 wires, it can accommodate smaller wire sizes with the use of wire adapters or terminals. However, it's not recommended to use larger wire sizes as it may compromise the connector's reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43045-1811 Overview

Use the download button to access the 43045-1811 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43045, or try a keyword search, such as Power Connectors
