43045-2010 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 43045-2010 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
• Is this connector suitable for outdoor or harsh environment applications?
  The 43045-2010 connector has a plastic housing with a UL94-V0 flammability rating, which provides some level of protection against environmental factors. However, it's not designed for direct exposure to harsh outdoor conditions, such as extreme temperatures, moisture, or UV radiation. For outdoor or harsh environment applications, consider using connectors with additional environmental protection features.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with some limitations. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. Consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.

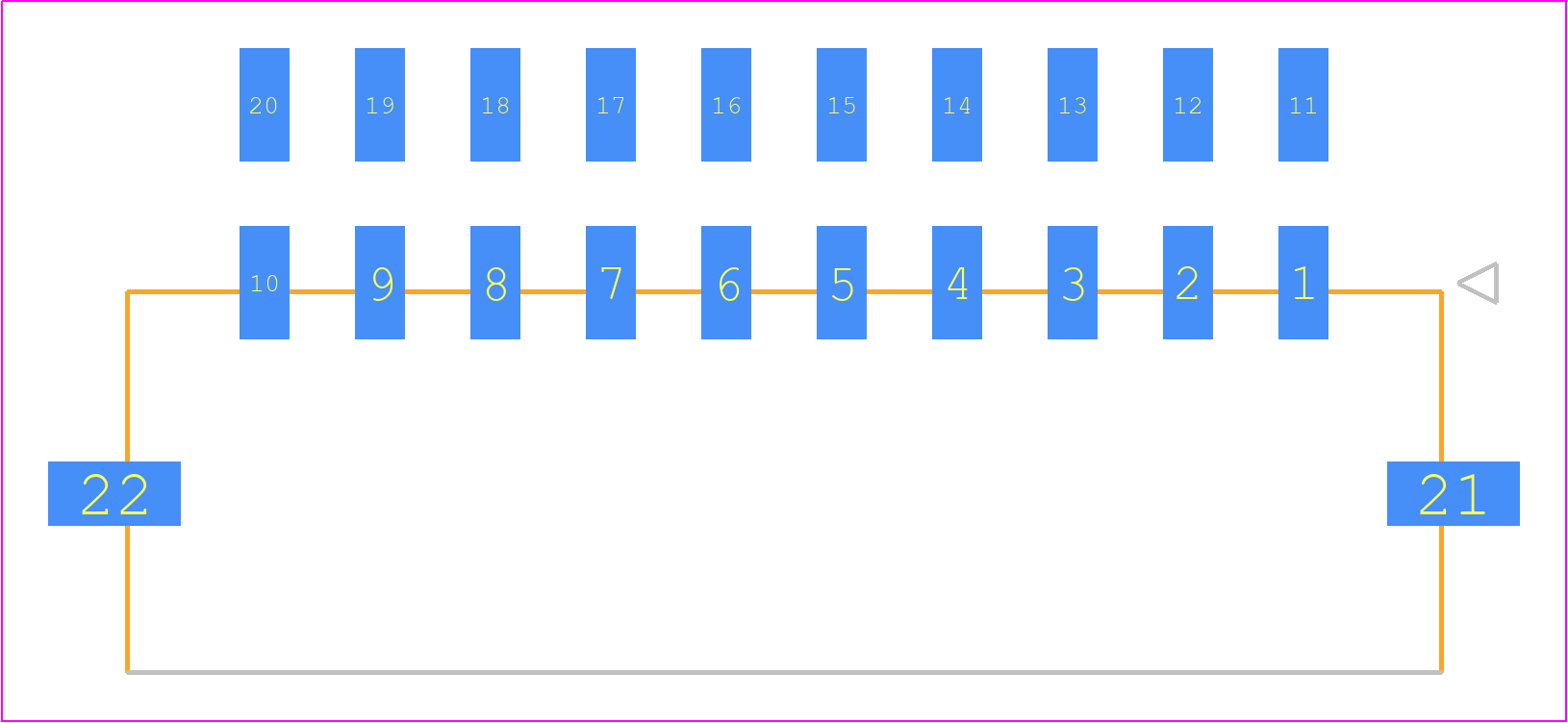

• Are there any specific PCB layout considerations for this connector?
  Yes, to ensure reliable operation and prevent damage to the connector or PCB, follow these layout considerations: maintain a minimum clearance of 1.5 mm between the connector and nearby components, avoid placing components under the connector's mounting tabs, and ensure the PCB is designed to accommodate the connector's height and width.
