430452207 footprint, schematic symbol and 3D model by Molex

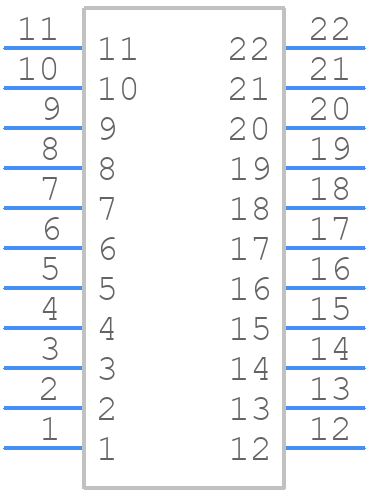

Symbol

click to zoom

PCB Footprints

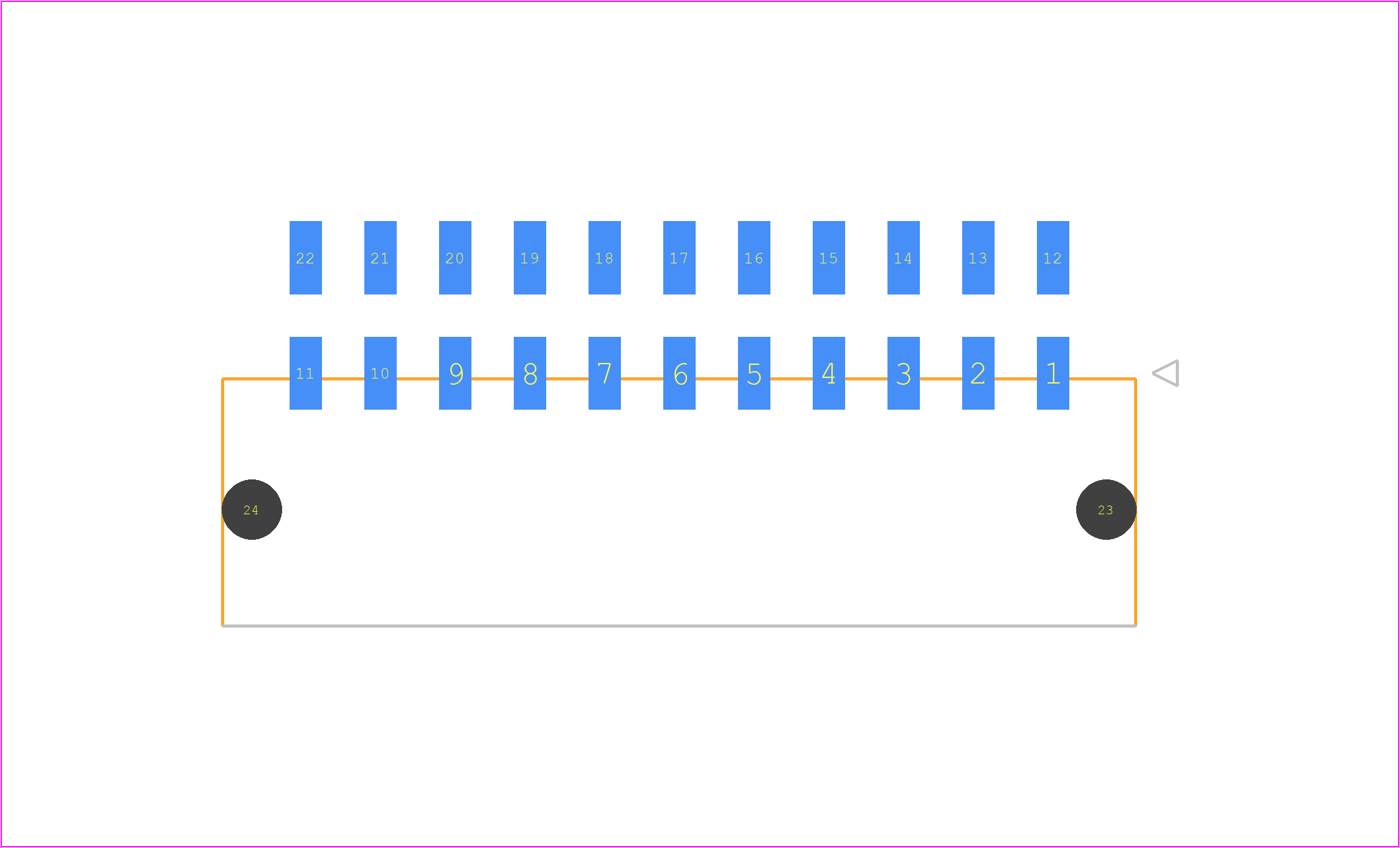

430452207 - Molex PCB footprint - Other - Other - 4304522YY_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 430452207
Part Number 430452207
Manufacturer Molex
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - 4304522YY_1
Released Date May 3, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

430452207 Details

Manufacturer Part Number:
430452207
Manufacturer:
Molex

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

430452207 Overview

Use the download button to access the 430452207 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 43045, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
