43160-0105 - Molex

Description: Headers & Wire Housings VERT HDR SMC 5P without board lock

Download 43160-0105 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43160-0105 - Molex - PCB symbol
click to zoom
PCB Footprints

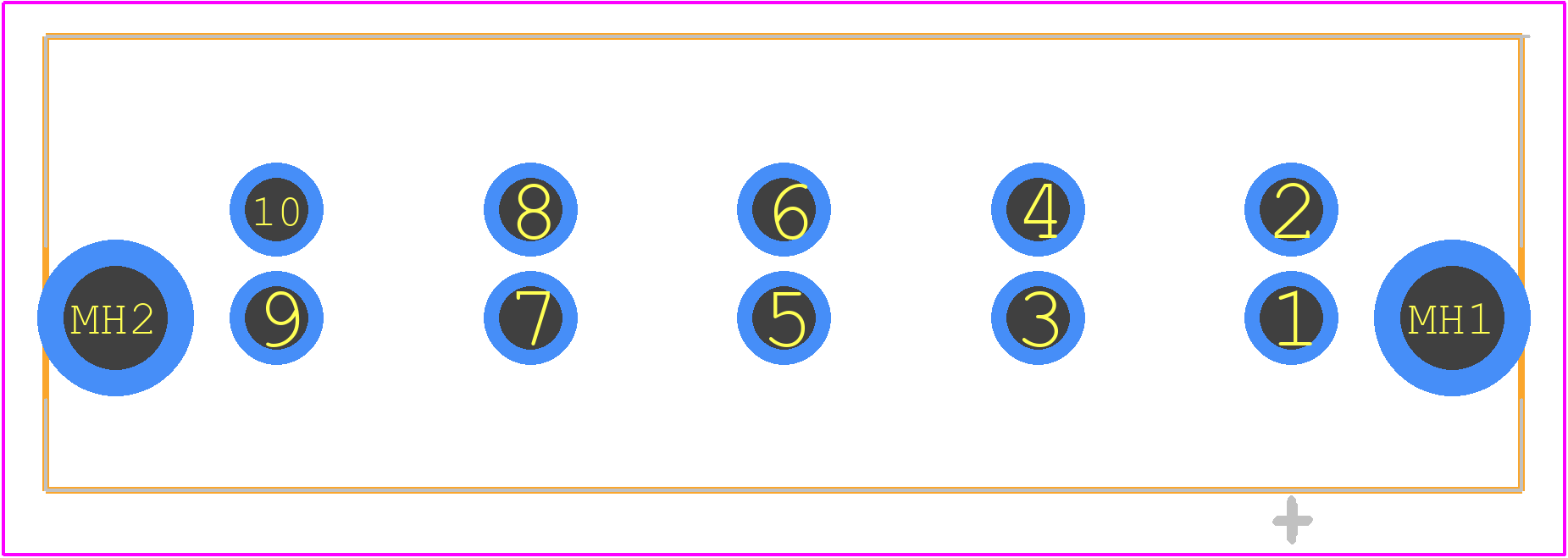

43160-0105 - Molex PCB footprint - Other - Other - 43160-0105-1
click to zoom
3D Models
43160-0105 - Molex - 3D model - Other - 43160-0105-1
click to zoom

43160-0105 Details

  • Manufacturer Part Number:

    43160-0105

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

43160-0105 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 43160-0105 connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
  • The operating temperature range of the 43160-0105 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 43160-0105 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The mating cycle life of the 43160-0105 connector is 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43160-0105 Overview

Use the download button to access the 43160-0105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43160, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
