43160-2102 - Molex

Description: Molex SABRE Series, Series Number 43160, 7.49mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 18A

Download 43160-2102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
43160-2102 - Molex - PCB symbol
click to zoom
PCB Footprints

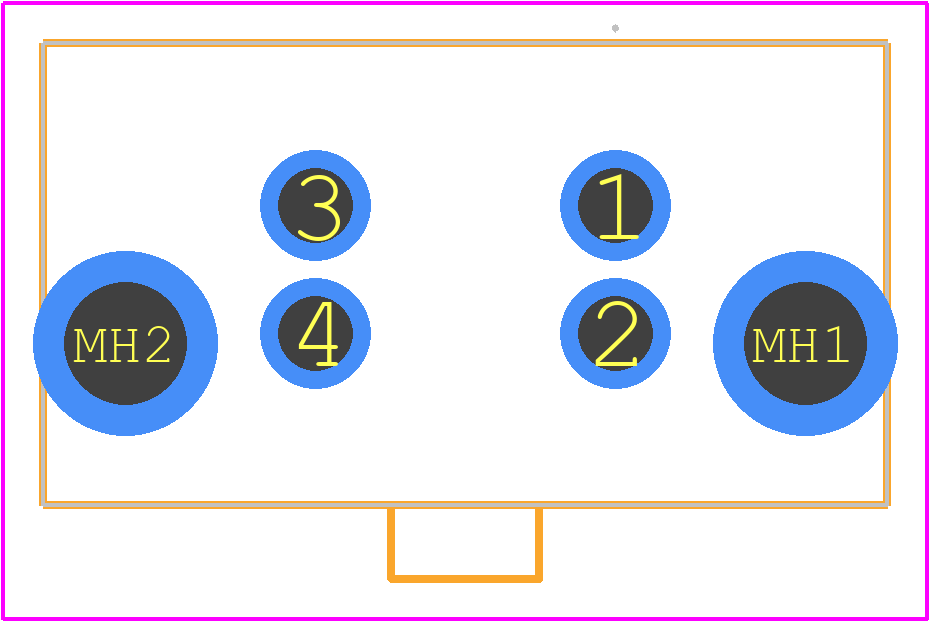

43160-2102 - Molex PCB footprint - Other - Other - 43160-2102-3
click to zoom
3D Models
43160-2102 - Molex - 3D model - Other - 43160-2102-3
click to zoom

43160-2102 Details

  • Manufacturer Part Number:

    43160-2102

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Hong Kong SAR, Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    6.87

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

43160-2102 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 43160-2102 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 43160-2102 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 43160-2102 is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 43160-2102 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

43160-2102 Overview

Use the download button to access the 43160-2102 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43160, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
