- Part Number 43255-0091
- Manufacturer Molex
- Pin Count 9
- Part Category Connector
- Package Category Other

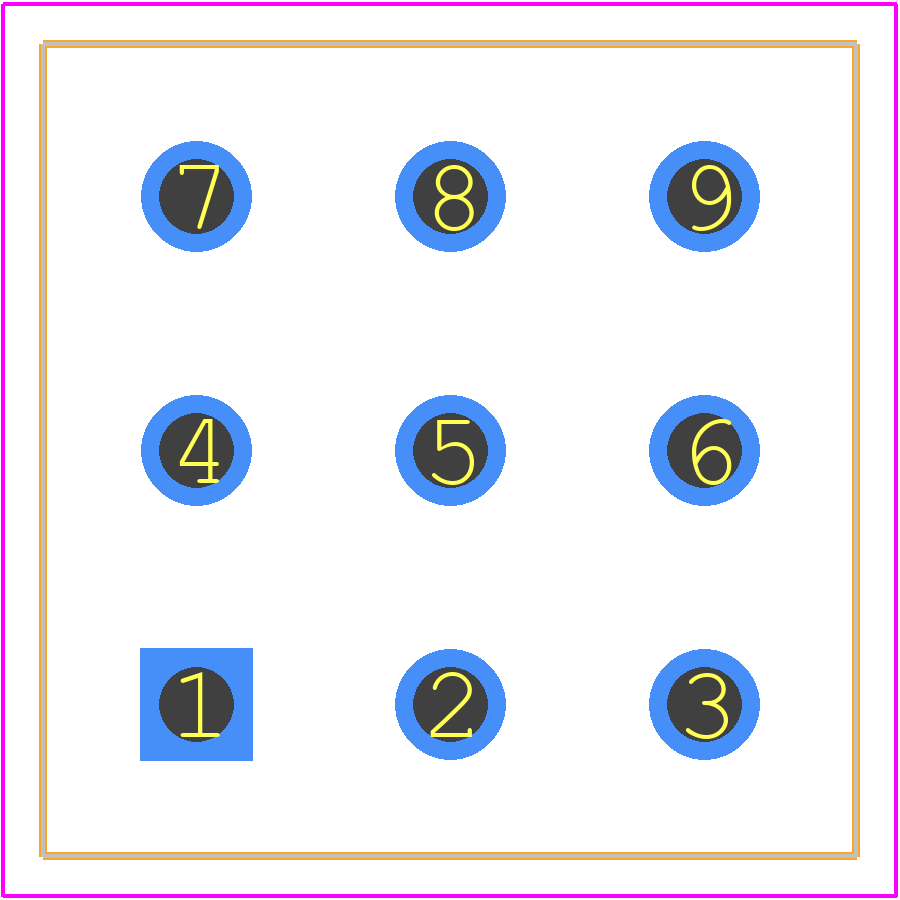

- Footprint Name Other - 43255-0091-1
- Released Date Oct 23, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
43255-0091 Details
-
Manufacturer Part Number:
43255-0091
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
India
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
11 Weeks
-
Manufacturer:
Molex
-
YTEOL:
7.3
-
Additional Feature:
POLARIZED
43255-0091 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 43255-0091 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
The 43255-0091 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environment applications, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
-
While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 43255-0091 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.
-
Yes, when designing the PCB layout, ensure that the connector is placed in a way that allows for easy access and mating. Also, consider the connector's footprint and ensure that there is sufficient clearance around the connector to prevent interference with other components.
