The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 43255-0153 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 43255-0153 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. Molex recommends using additional sealing or conformal coating to ensure reliability in such environments.
The 43255-0153 connector is designed to accommodate wire sizes between 24 AWG and 16 AWG. Using wire sizes outside this range may compromise the connector's performance and reliability.
The 43255-0153 connector is designed to be compatible with Molex's mating connectors. While it may be possible to use it with connectors from other manufacturers, compatibility and reliability cannot be guaranteed. It's recommended to use Molex's mating connectors for optimal performance and reliability.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
43255-0153 Overview

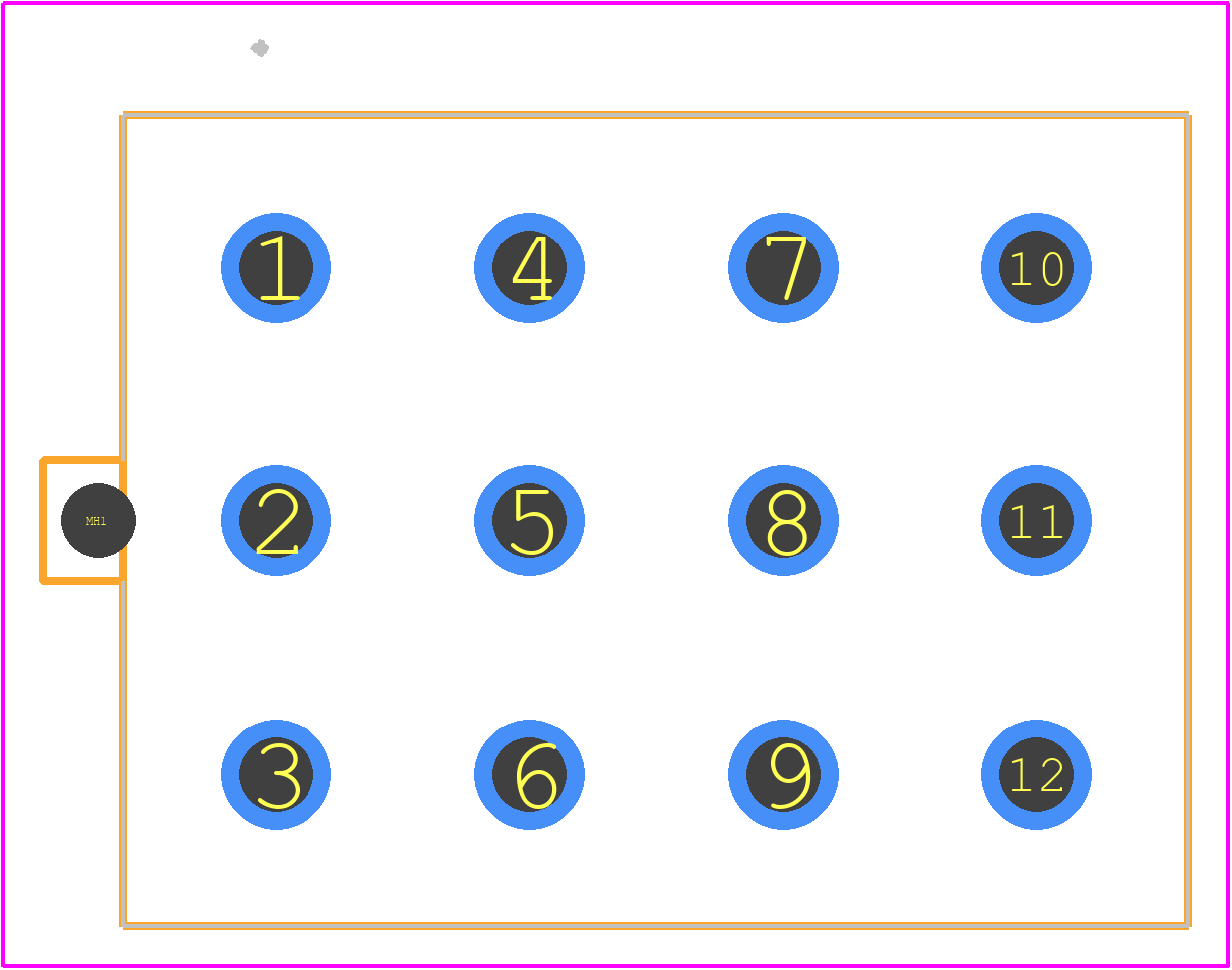

Use the download button to access the 43255-0153 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 43255,
or try a keyword search, such as Power Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
